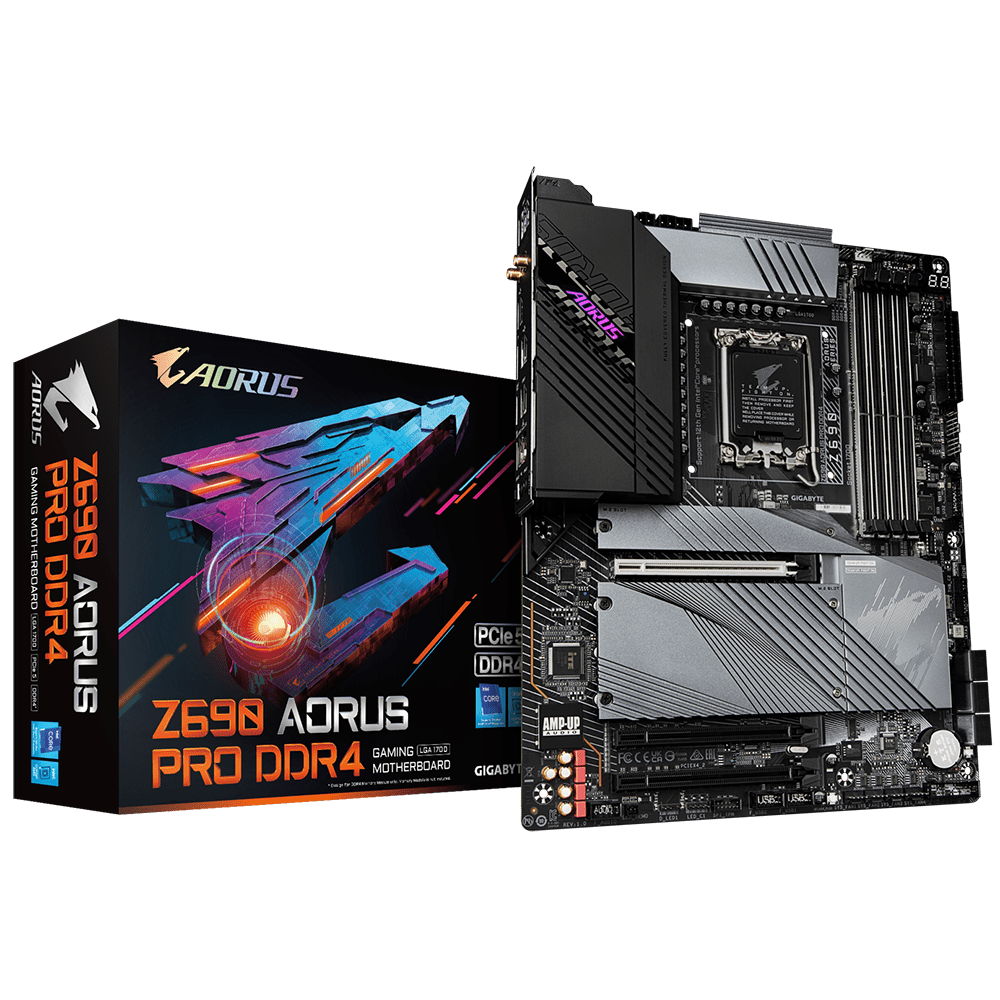

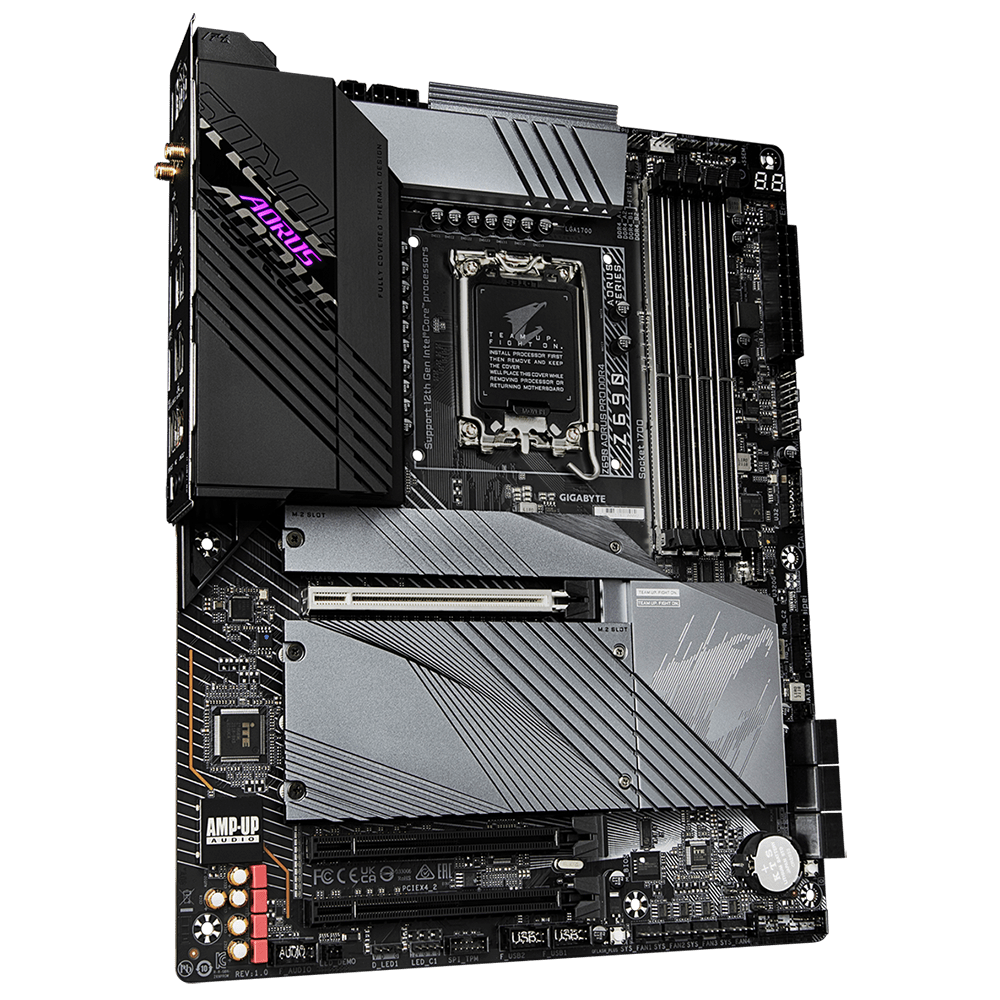

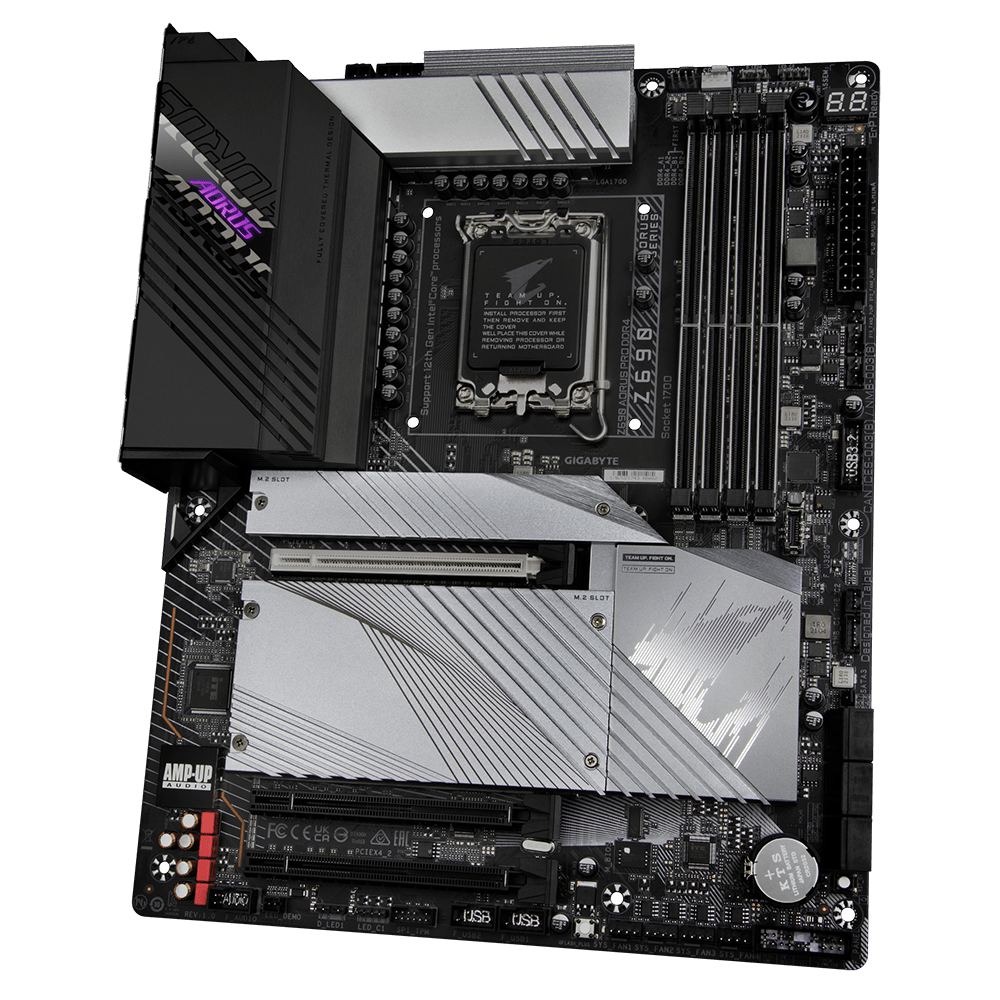

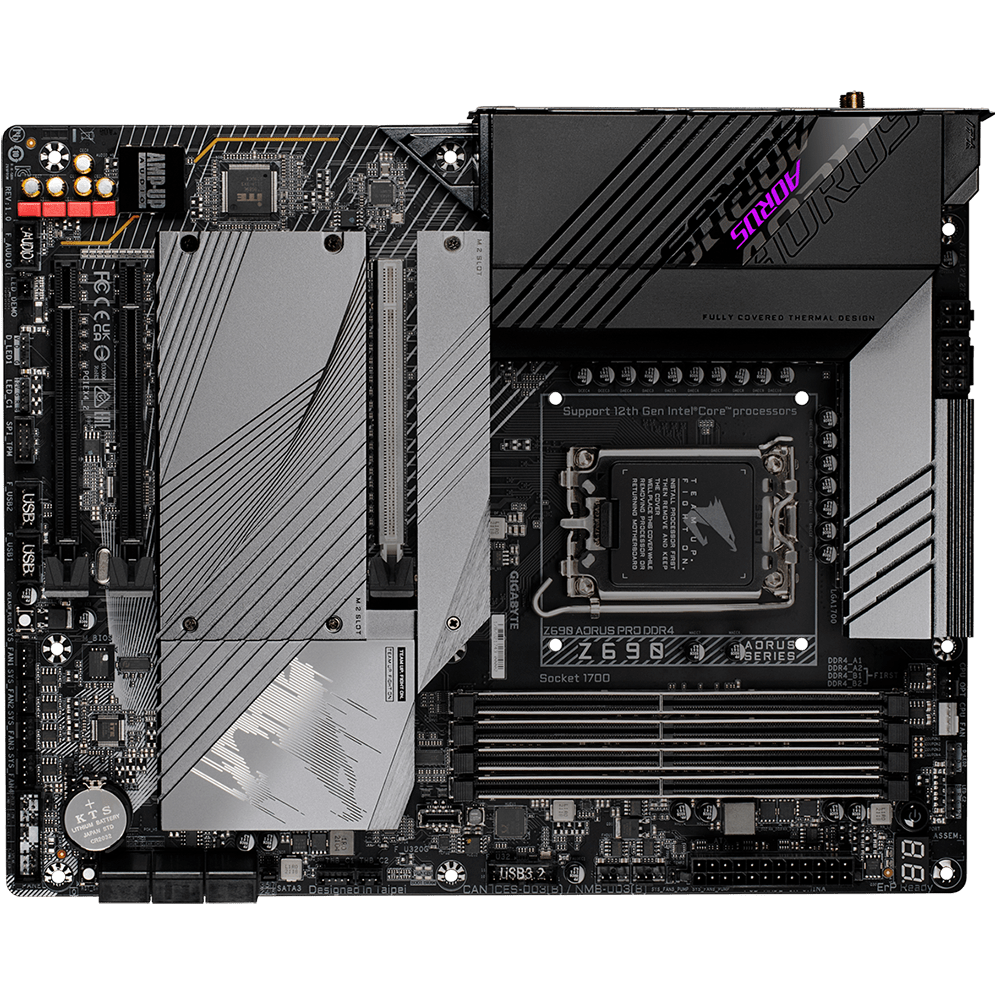

GIGABYTE – Z690 AORUS PRO DDR4 (REV. 1.X)

LGA1700 SOCKET: SUPPORT FOR THE 14TH, 13TH, AND 12TH GENERATION INTEL® CORE™, PENTIUM® GOLD AND CELERON® PROCESSORS*

L3 CACHE VARIES WITH CPU

DDR4 5600(O.C.)/ 5400(O.C.)/ 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHZ MEMORY MODULES

4 X DDR DIMM SOCKETS SUPPORTING UP TO 128 GB (32 GB SINGLE DIMM CAPACITY) OF SYSTEM MEMORY

DUAL CHANNEL MEMORY ARCHITECTURE

SUPPORT FOR ECC UN-BUFFERED DIMM 1RX8/2RX8 MEMORY MODULES (OPERATE IN NON-ECC MODE)

SUPPORT FOR NON-ECC UN-BUFFERED DIMM 1RX8/2RX8/1RX16 MEMORY MODULES

SUPPORT FOR EXTREME MEMORY PROFILE (XMP) MEMORY MODULES

INTEGRATED GRAPHICS PROCESSOR-INTEL® HD GRAPHICS SUPPORT:

1 X DISPLAYPORT, SUPPORTING A MAXIMUM RESOLUTION OF 4096X2304@60 HZ

* SUPPORT FOR DISPLAYPORT 1.2 VERSION AND HDCP 2.3

CPU:

1 X M.2 CONNECTOR (SOCKET 3, M KEY, TYPE 2260/2280/22110 PCIE 4.0 X4/X2 SSD SUPPORT) (M2A_CPU)

CHIPSET:

1 X M.2 CONNECTOR (SOCKET 3, M KEY, TYPE 2260/2280/22110 SATA AND PCIE 4.0 X4/X2 SSD SUPPORT) (M2C_SB)

2 X M.2 CONNECTORS (SOCKET 3, M KEY, TYPE 2260/2280/22110 PCIE 4.0 X4/X2 SSD SUPPORT) (M2P_SB/M2Q_SB)

6 X SATA 6GB/S CONNECTORS

1 X PCI EXPRESS X16 SLOT, RUNNING AT X16 (PCIEX16)

(THE PCIEX16 SLOT CONFORMS TO PCI EXPRESS 5.0 STANDARD.)

2 X PCI EXPRESS X16 SLOTS, RUNNING AT X4 (PCIEX4_1, PCIEX4_2)

(THE PCIEX4 SLOTS CONFORM TO PCI EXPRESS 3.0 STANDARD.)
