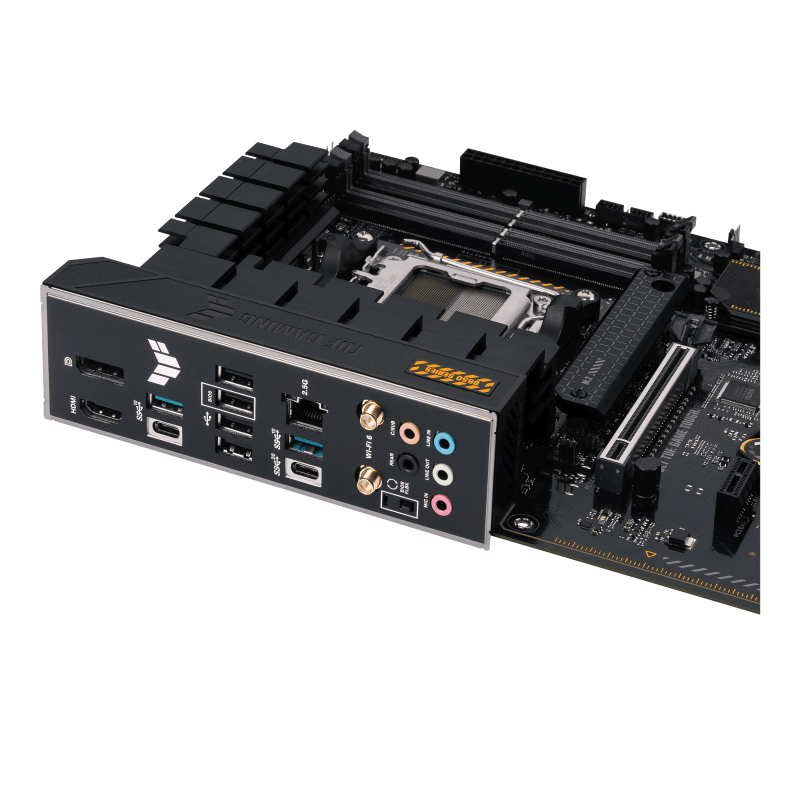

ASUS – TUF GAMING B650-PLUS WIFI

AMD SOCKET AM5 FOR AMD RYZEN™ 7000 & 8000 SERIES DESKTOP PROCESSORS*

4 X DIMM, MAX. 128GB, DDR5

7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & NON-ECC, UN-BUFFERED MEMORY*

DUAL CHANNEL MEMORY ARCHITECTURE

SUPPORTS AMD EXTENDED PROFILES FOR OVERCLOCKING (EXPO™)

OPTIMEM II

1 X DISPLAYPORT*

1 X HDMI® PORT**

AMD RYZEN™ 7000 SERIES DESKTOP PROCESSORS*

1 X PCIE 4.0/3.0 X16 SLOT(S)

AMD RYZEN™ 8000 SERIES DESKTOP PROCESSORS*

1 X PCIE 4.0 X16 SLOT (SUPPORTS X8/X4 MODE)**

AMD B650 CHIPSET

1 X PCIE 4.0/3.0 X16 SLOT (SUPPORTS X4 MODE)

2 X PCIE 4.0/3.0 X1 SLOTS

TOTAL SUPPORTS 3 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS

AMD RYZEN™ 7000 SERIES DESKTOP PROCESSORS

M.2_1 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 5.0 X4 MODE)

M.2_2 SLOT (KEY M), TYPE 2242/2260/2280/22110 (SUPPORTS PCIE 4.0 X4 MODE)

AMD RYZEN™ 8000 SERIES DESKTOP PROCESSORS

M.2_1 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)

M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4/X2 MODE)**

AMD B650 CHIPSET

M.2_3 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)***

4 X SATA 6GB/S PORTS
