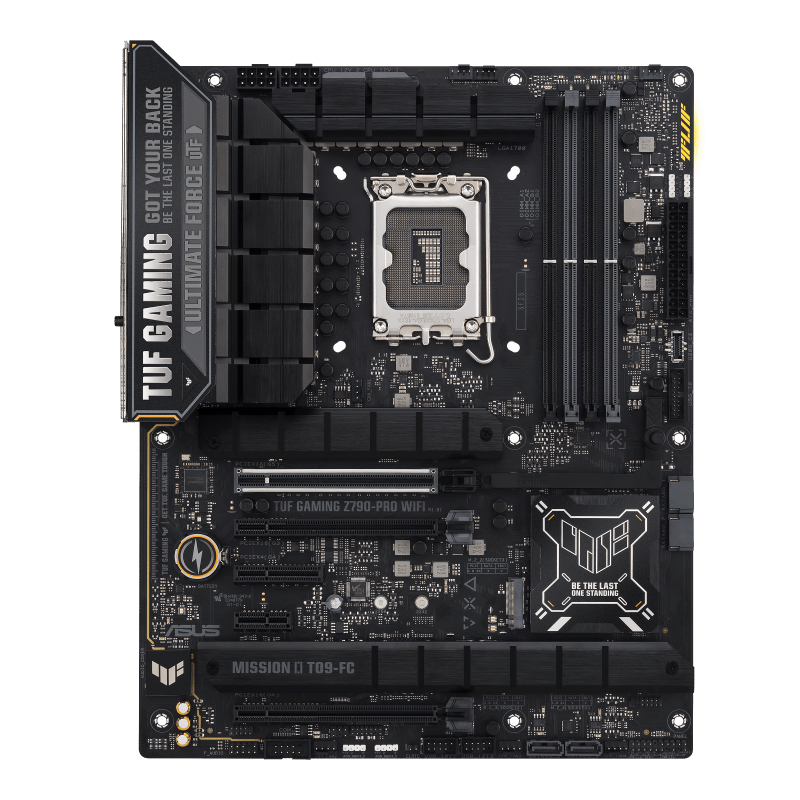

ASUS – TUF GAMING Z790-PRO WIFI

INTEL® LGA 1700 SOCKET: READY FOR INTEL® CORE™ 14TH & 13TH GEN INTEL® CORE™ PROCESSORS, INTEL® CORE™ 12TH GEN, PENTIUM® GOLD AND CELERON® PROCESSORS

SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0**

4 X DIMM SLOTS, MAX. 192GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 NON-ECC, UN-BUFFERED MEMORY*

DUAL CHANNEL MEMORY ARCHITECTURE

SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) MEMORY MODULE

ASUS ENHANCED MEMORY PROFILE II (AEMP II)

1 X DISPLAYPORT**

1 X HDMI™ PORT***

INTEL® CORE™ PROCESSORS(14TH & 13TH & 12TH )*

1 X PCIE 5.0 X16 SLOT

INTEL® Z790 CHIPSET

1 X PCIE 4.0 X16 SLOT (SUPPORTS X4 MODE)

1 X PCIE 4.0 X4 SLOT

1 X PCIE 3.0 X16 SLOT (SUPPORTS X1 MODE)

1 X PCIE 3.0 X1 SLOT

SUPPORTS 4 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS*

INTEL® CORE™ PROCESSORS(14TH & 13TH & 12TH )*

M.2_1 SLOT (KEY M), TYPE 2242/2260/2280/22110 (SUPPORTS PCIE 4.0 X4 MODE)

INTEL® Z790 CHIPSET

M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)

M.2_3 SLOT (KEY M), TYPE 2242/2260/2280/22110 (SUPPORTS PCIE 4.0 X4 MODE)

M.2_4 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 & SATA MODES)

4 X SATA 6GB/S PORTS
