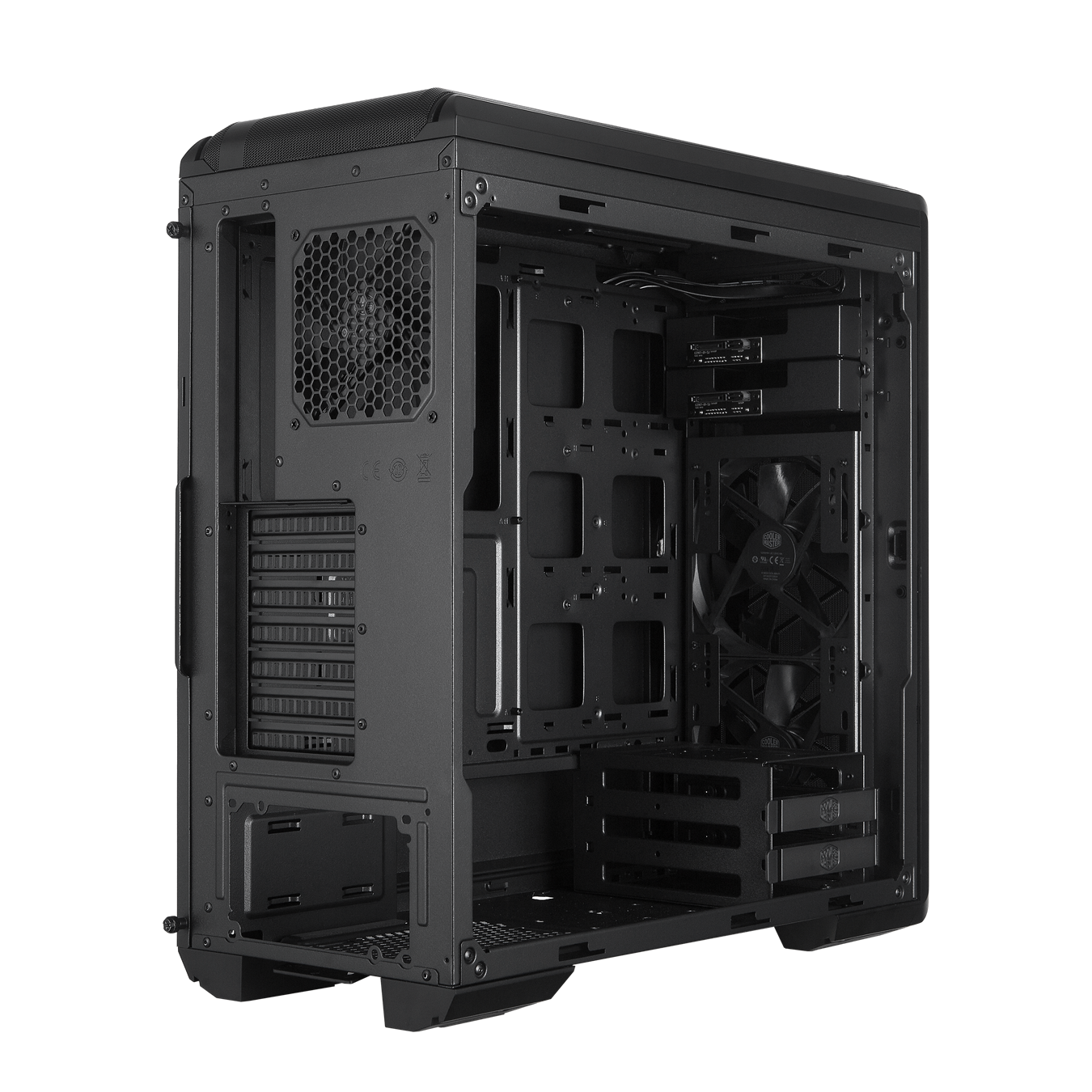

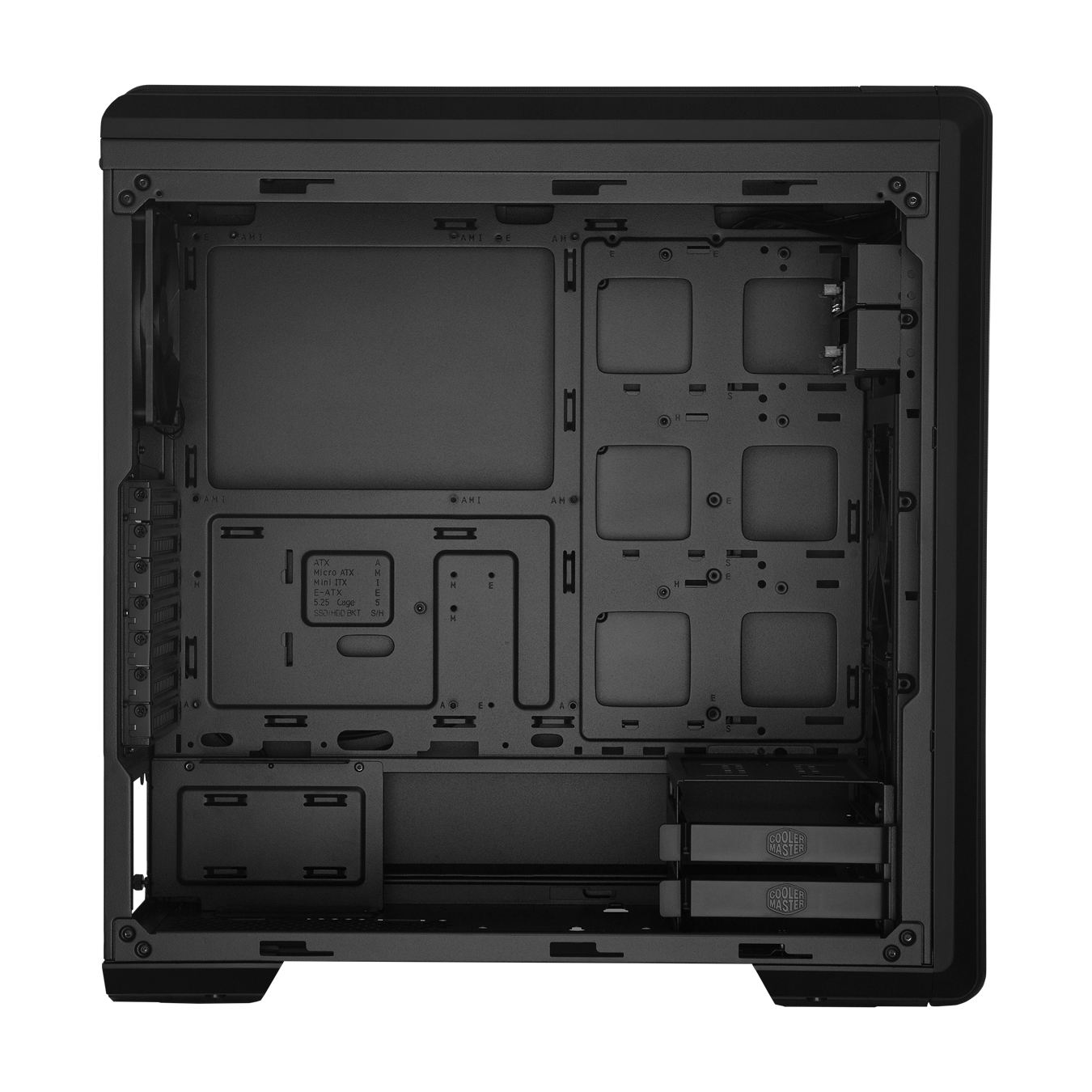

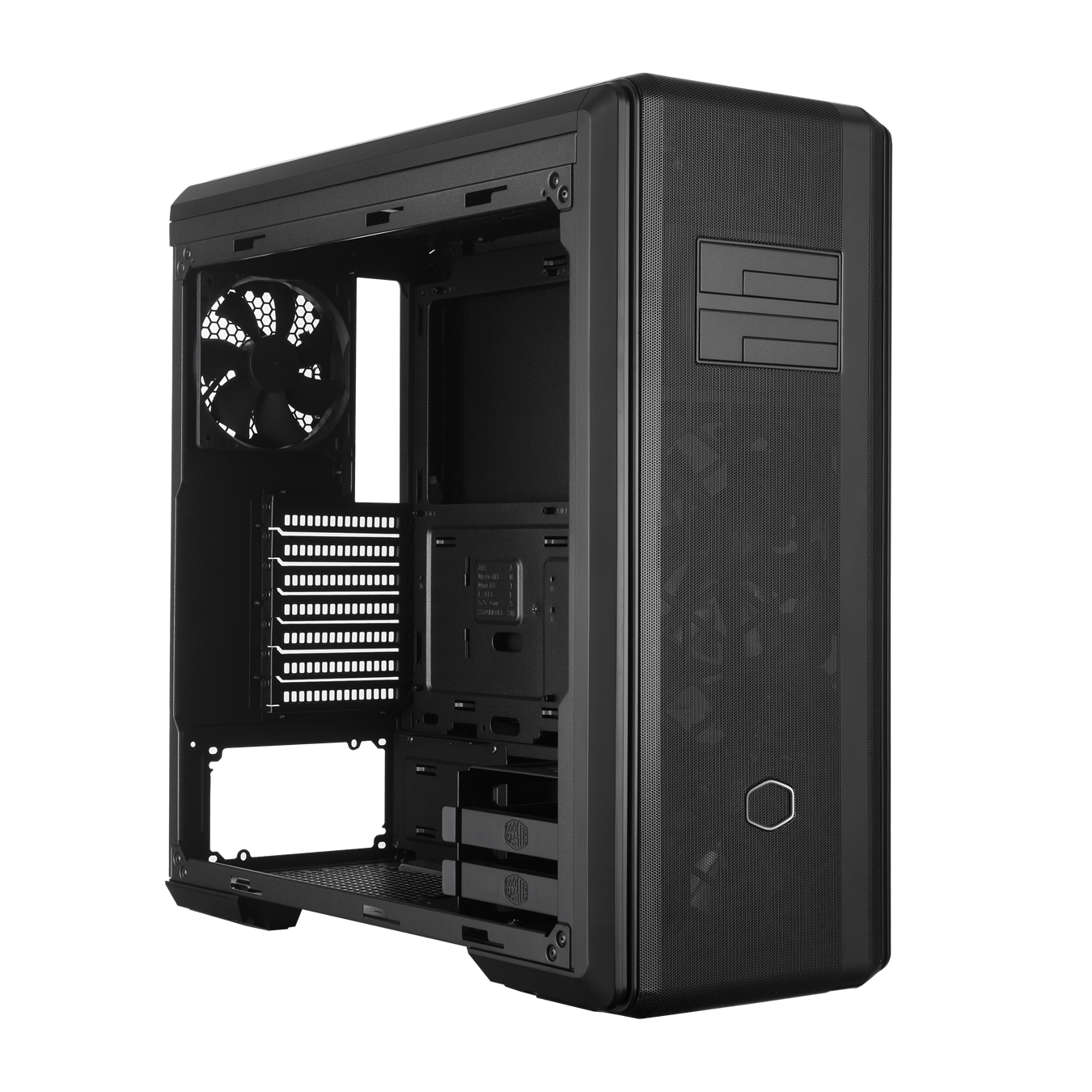

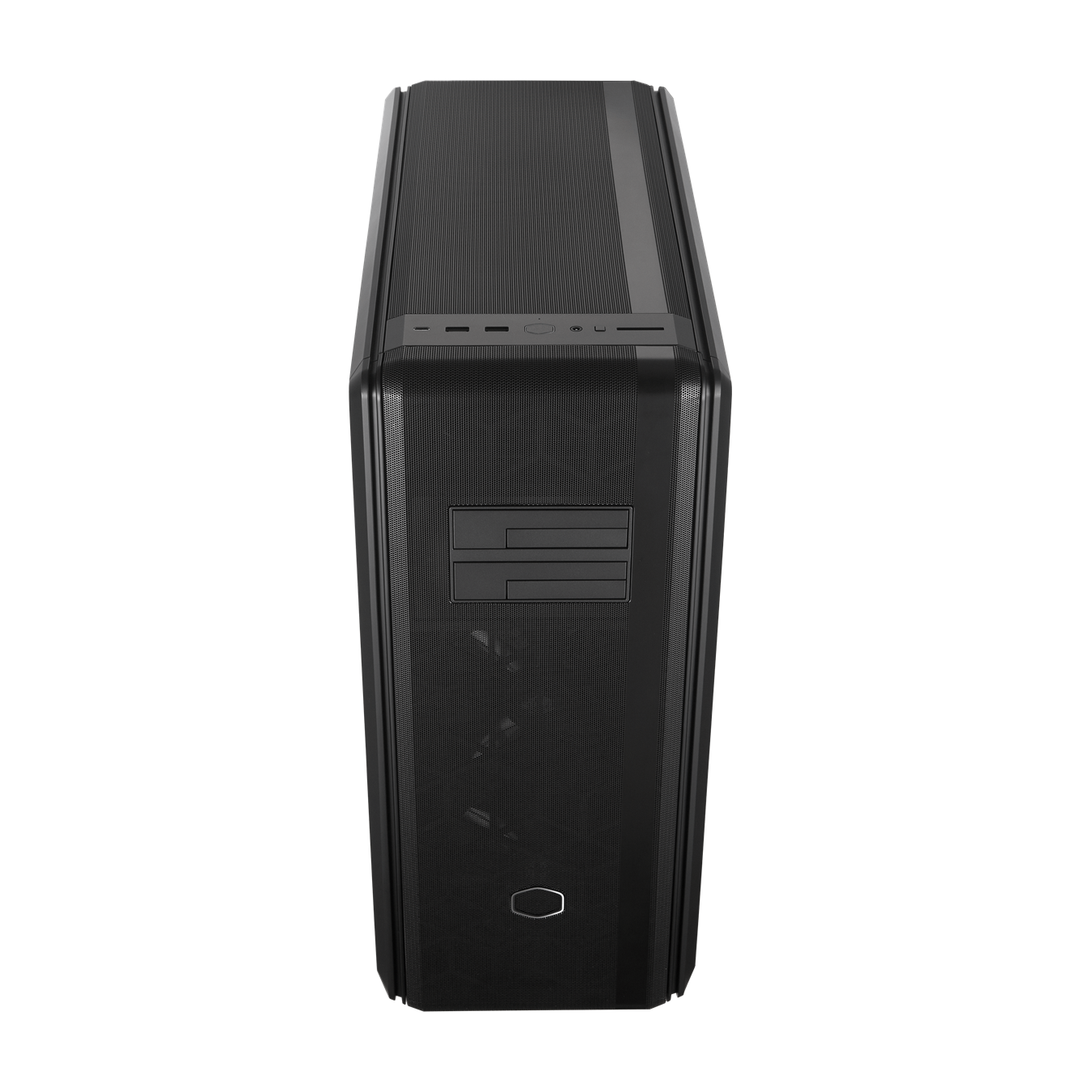

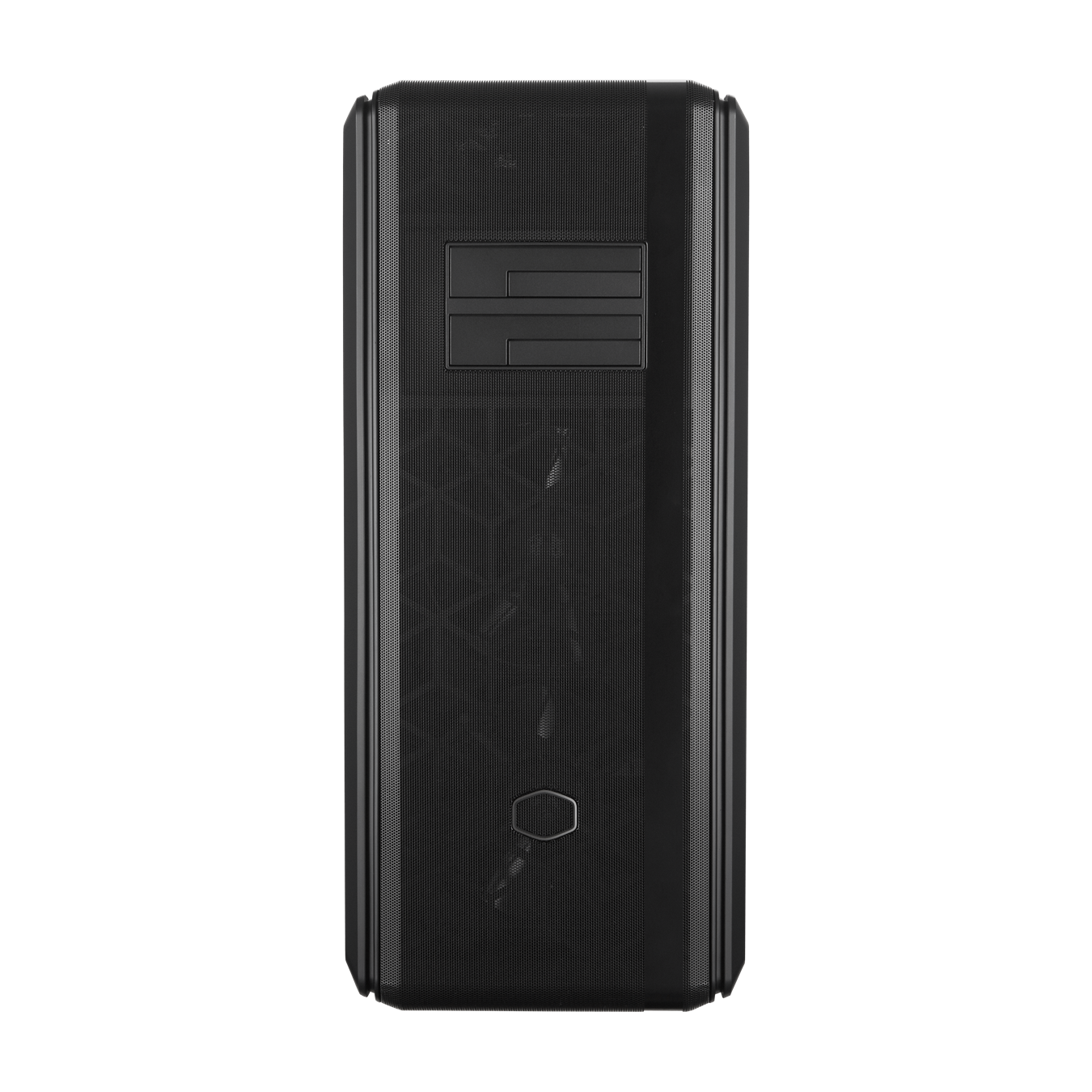

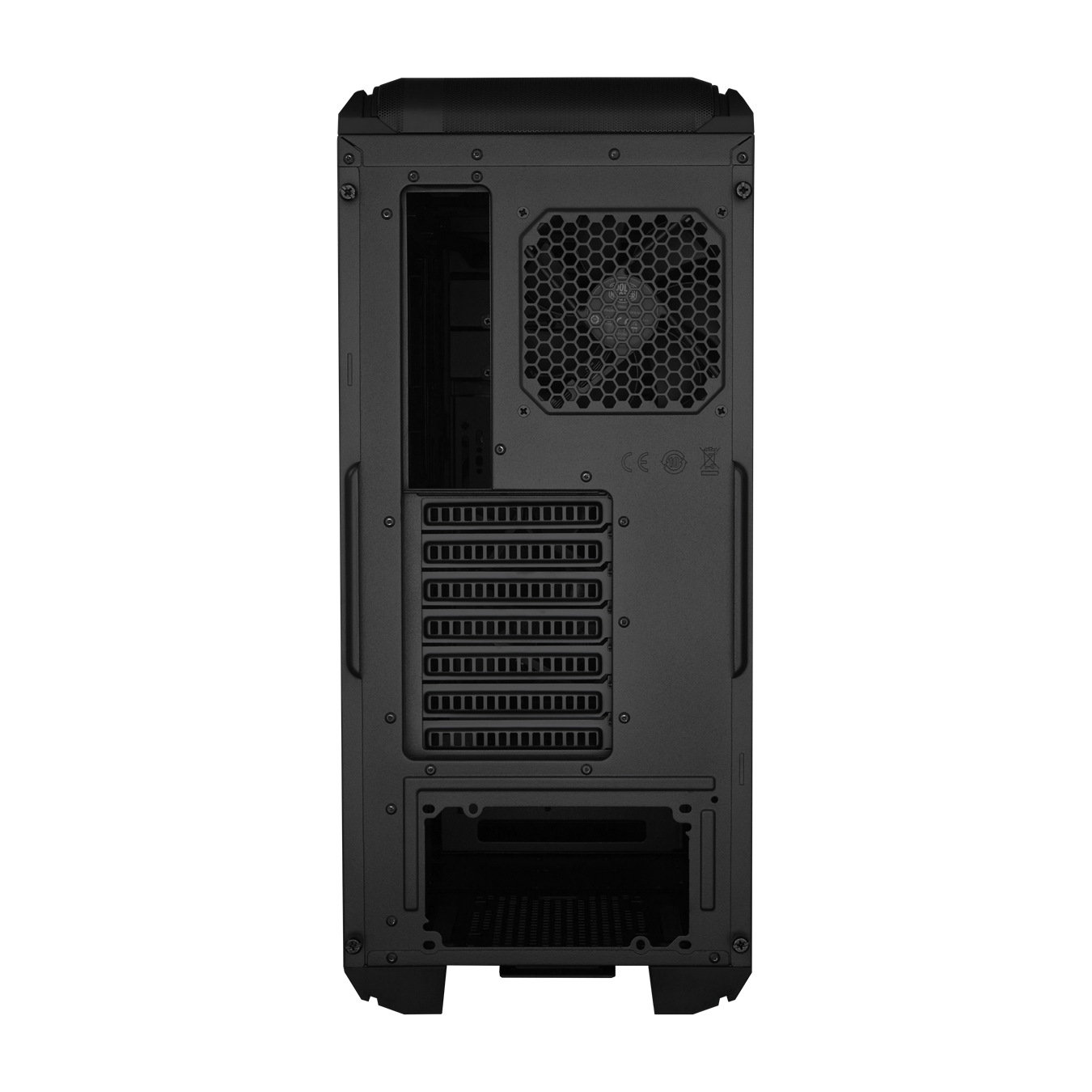

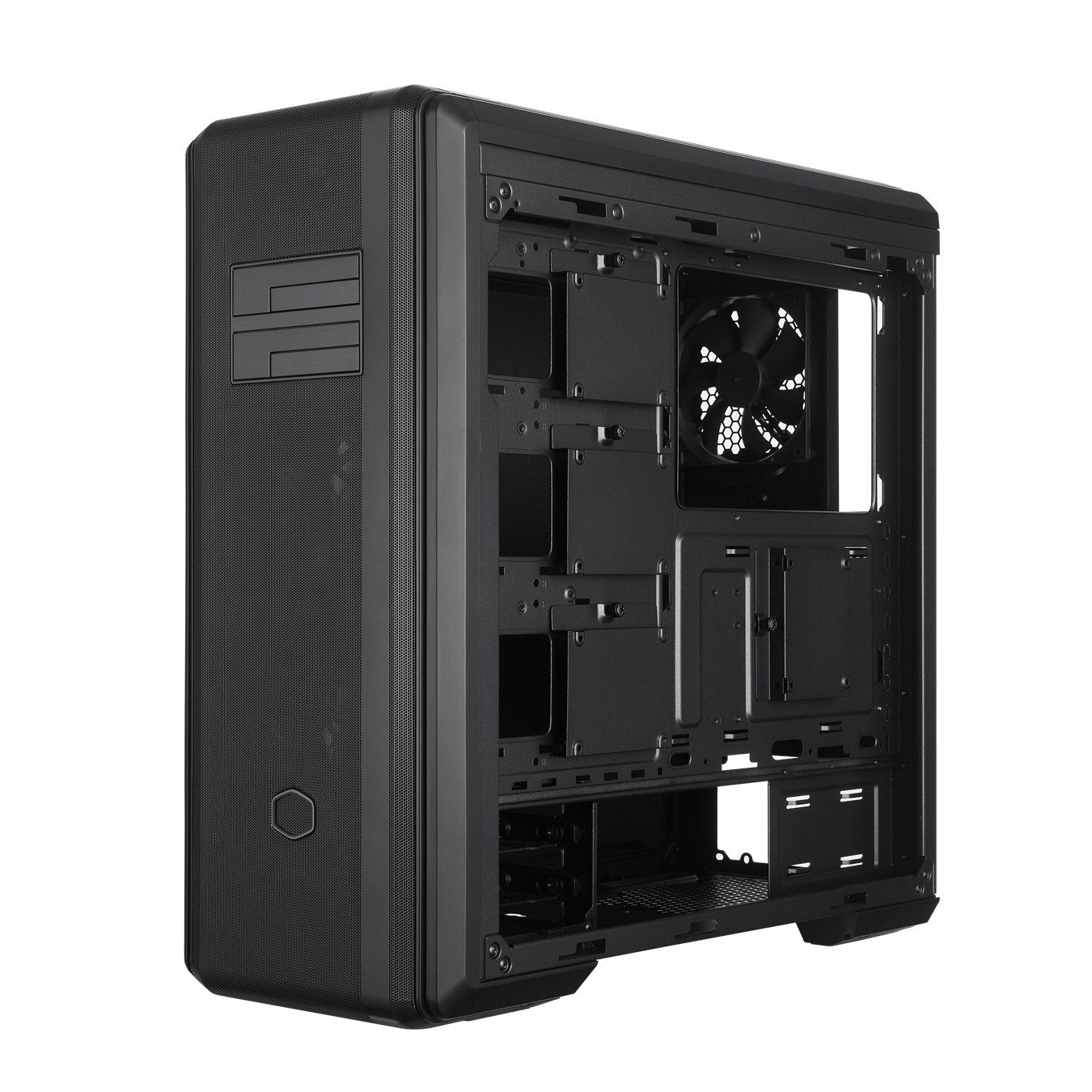

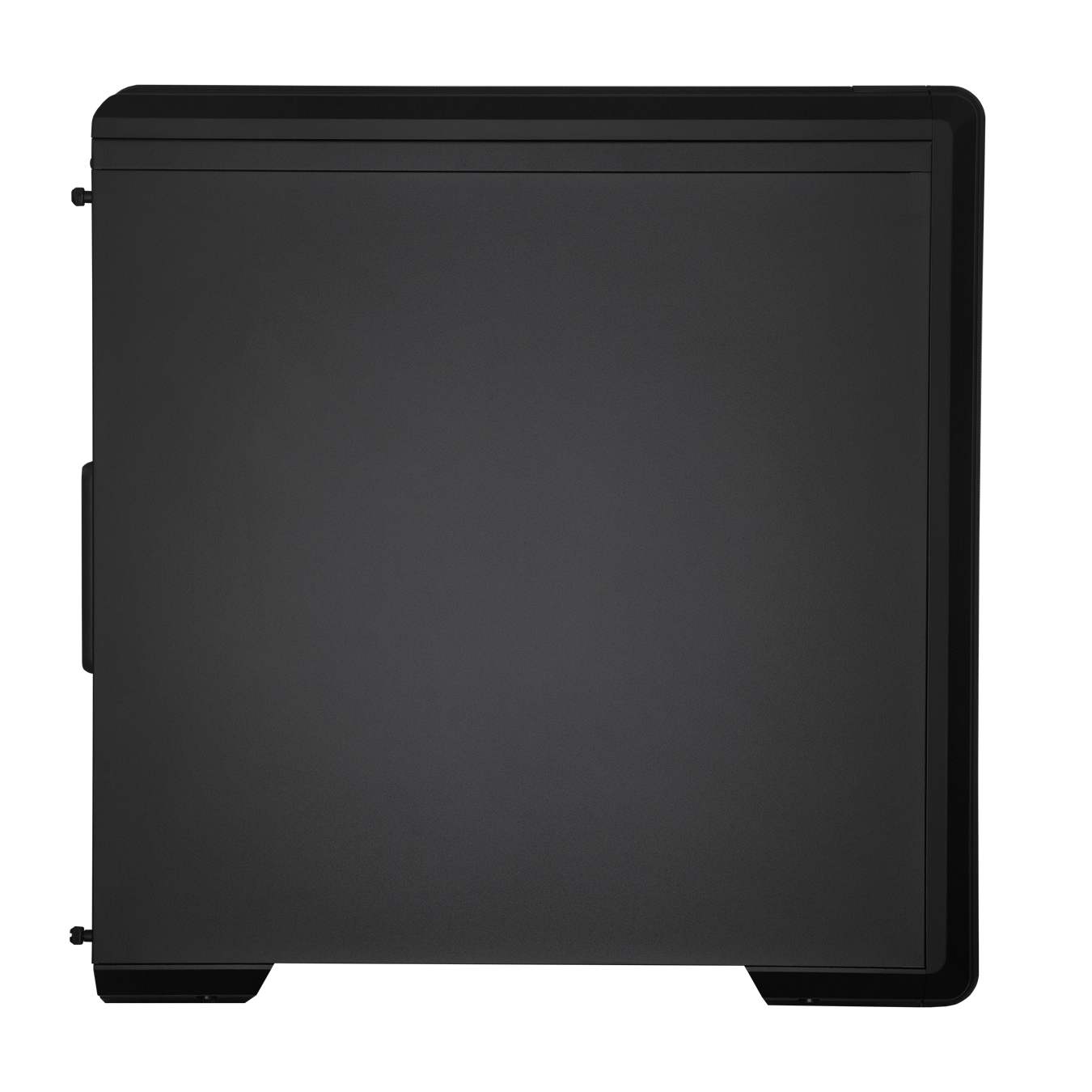

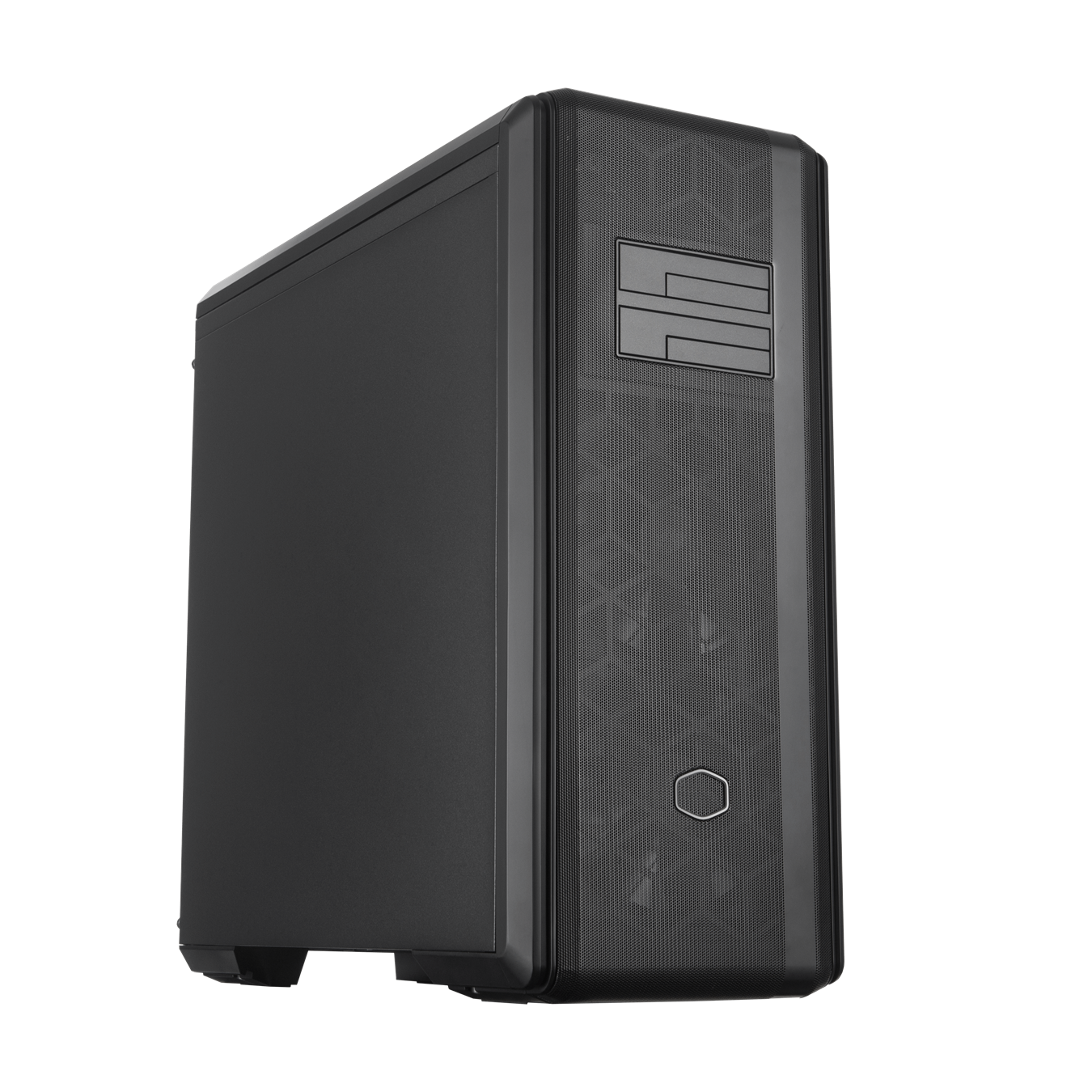

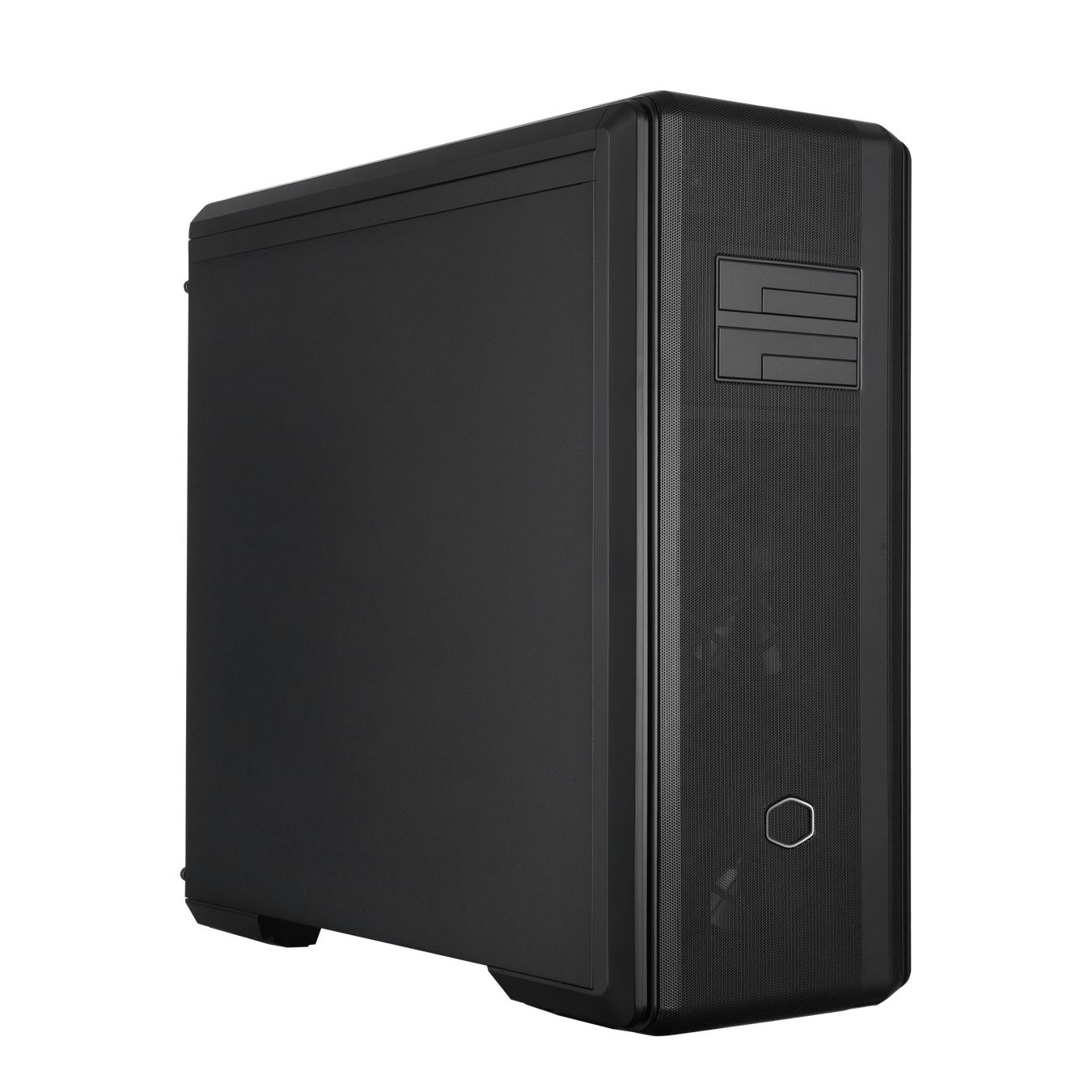

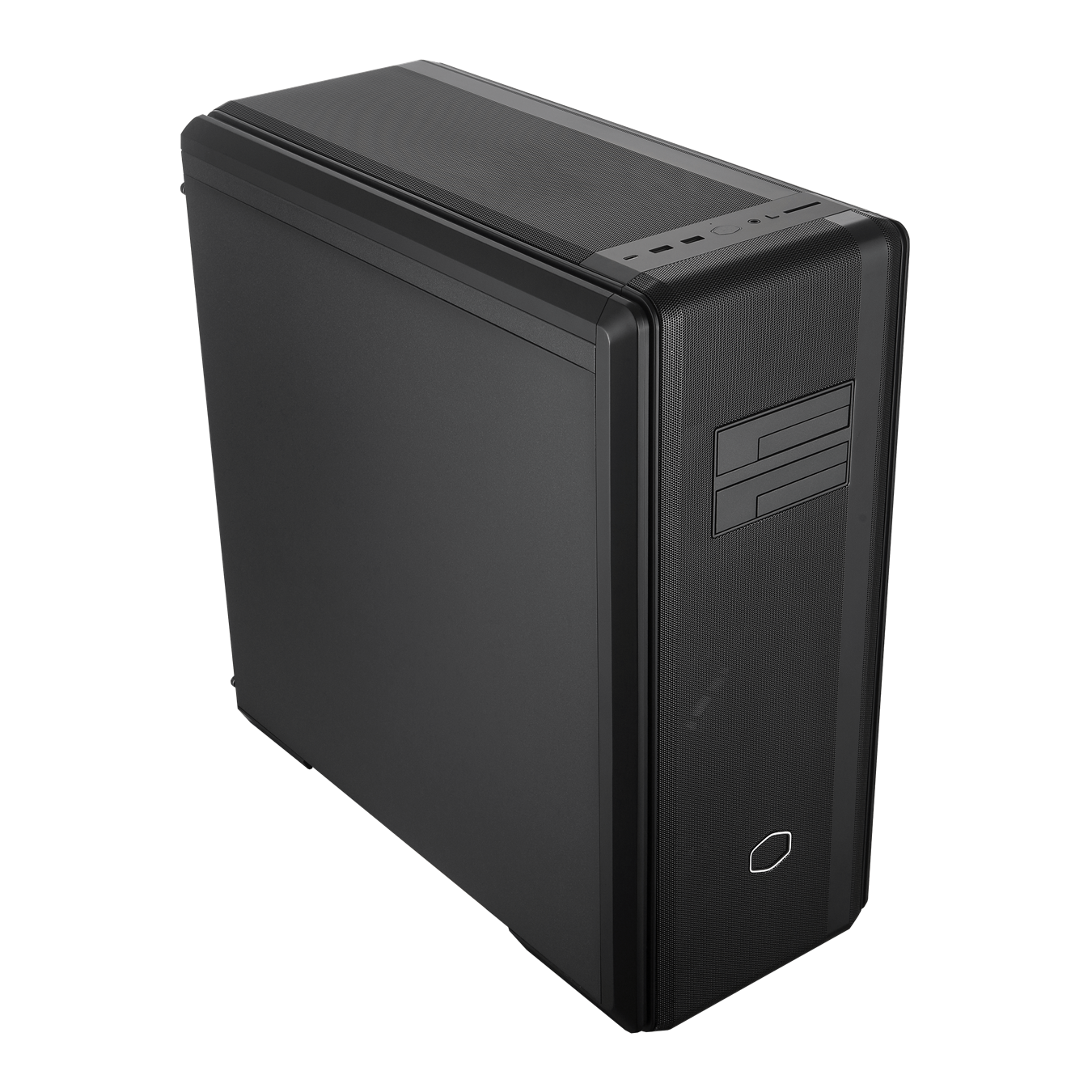

COOLER MASTER MASTERBOX NR600P CABINET

MODEL NUMBER

MCB-NR600P-KNNN-S00

SERIES

MASTERBOX SERIES

SIZE

MID TOWER

COLOR(S)

BLACK

MATERIALS

MESH, STEEL, PLASTIC

DIMENSIONS (L X W X H)

493MM X 220MM X 506MM (INCL. PROTRUSIONS), 482MM X 220MM X 477MM (EXCL. PROTRUSIONS)

MOTHERBOARD SUPPORT

MINI ITX, MICRO ATX, ATX, SSI CEB, E-ATX, SSI EEB

EXPANSION SLOTS

7

3.5″ DRIVE BAYS

1

2.5″ / 3.5″ DRIVE BAYS (COMBO)

2

2.5″ DRIVE BAYS

4

I/O PANEL

1X USB 3.2 GEN 1 TYPE-C, 2X USB 3.2 GEN 1 TYPE-A, 1X SD/MMC CARD READER, 1X 3.5MM HEADSET JACK (AUDIO+MIC)

PRE-INSTALLED FANS – TOP

N/A

PRE-INSTALLED FANS – REAR

1X 120MM

PRE-INSTALLED FANS – FRONT

2X 140MM, 1200RPM

FAN SUPPORT – TOP

3X 120MM, 2X 140MM

FAN SUPPORT – FRONT

2X 120/140MM

FAN SUPPORT – REAR

1X 120MM

RADIATOR SUPPORT – TOP

120MM, 140MM, 240MM, 280MM, 360MM, (MAXIMUM THICKNESS CLEARANCE 43MM)

RADIATOR SUPPORT – FRONT

120MM, 140MM, 240MM, 280MM, (240MM AND 280MM REQUIRE REPOSITIONING OF STORAGE CAGE)

RADIATOR SUPPORT – REAR

120MM

CLEARANCE – CPU COOLER

171MM

CLEARANCE – PSU

276MM, 180MM

CLEARANCE – GFX

410MM/16.1″

CABLE ROUTING

27-29MM

DUST FILTERS

TOP, FRONT, BOTTOM

POWER SUPPLY SUPPORT

BOTTOM MOUNT, ATX

WARRANTY

2 YEARS

EAN CODE

4719512101506

UPC CODE

884102073809
