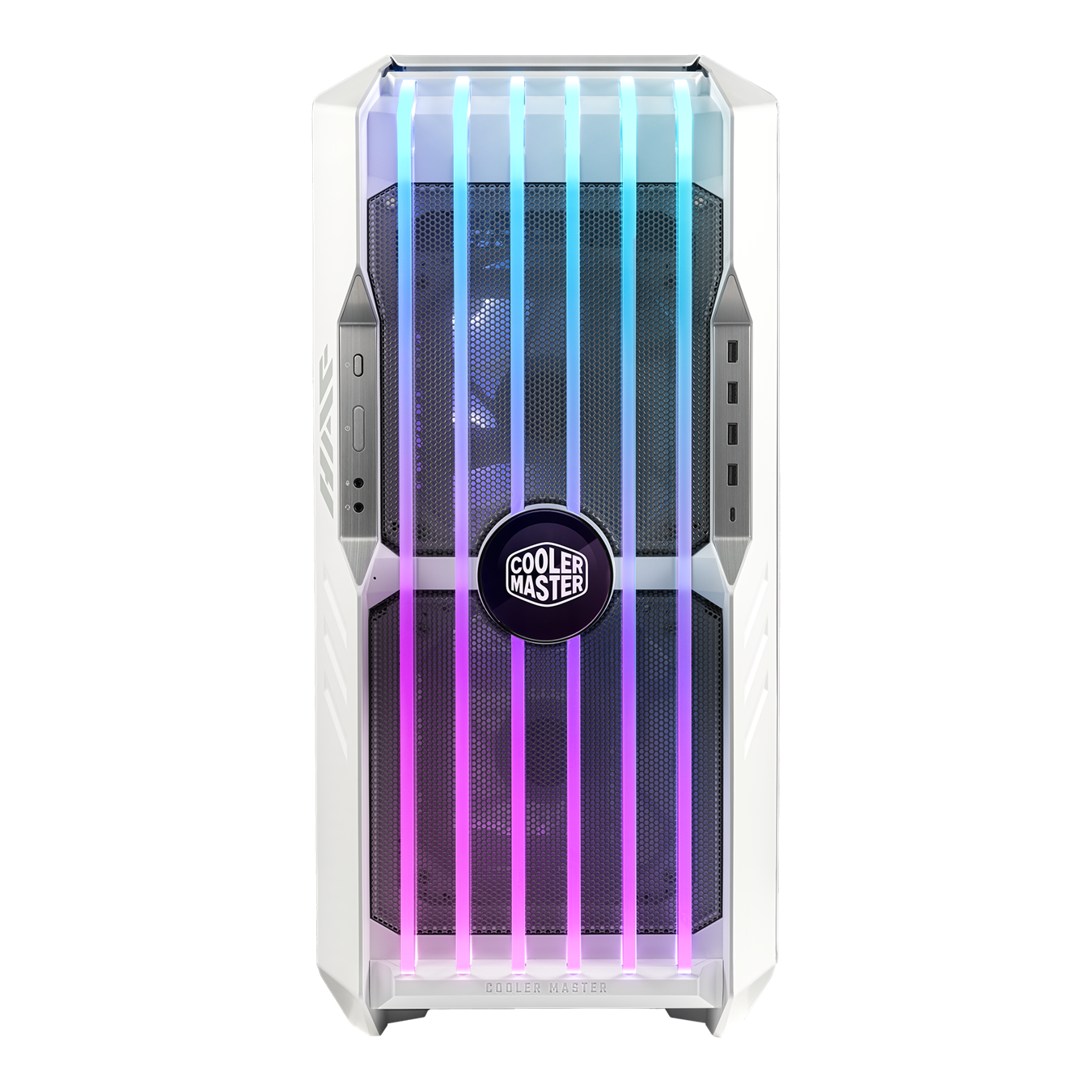

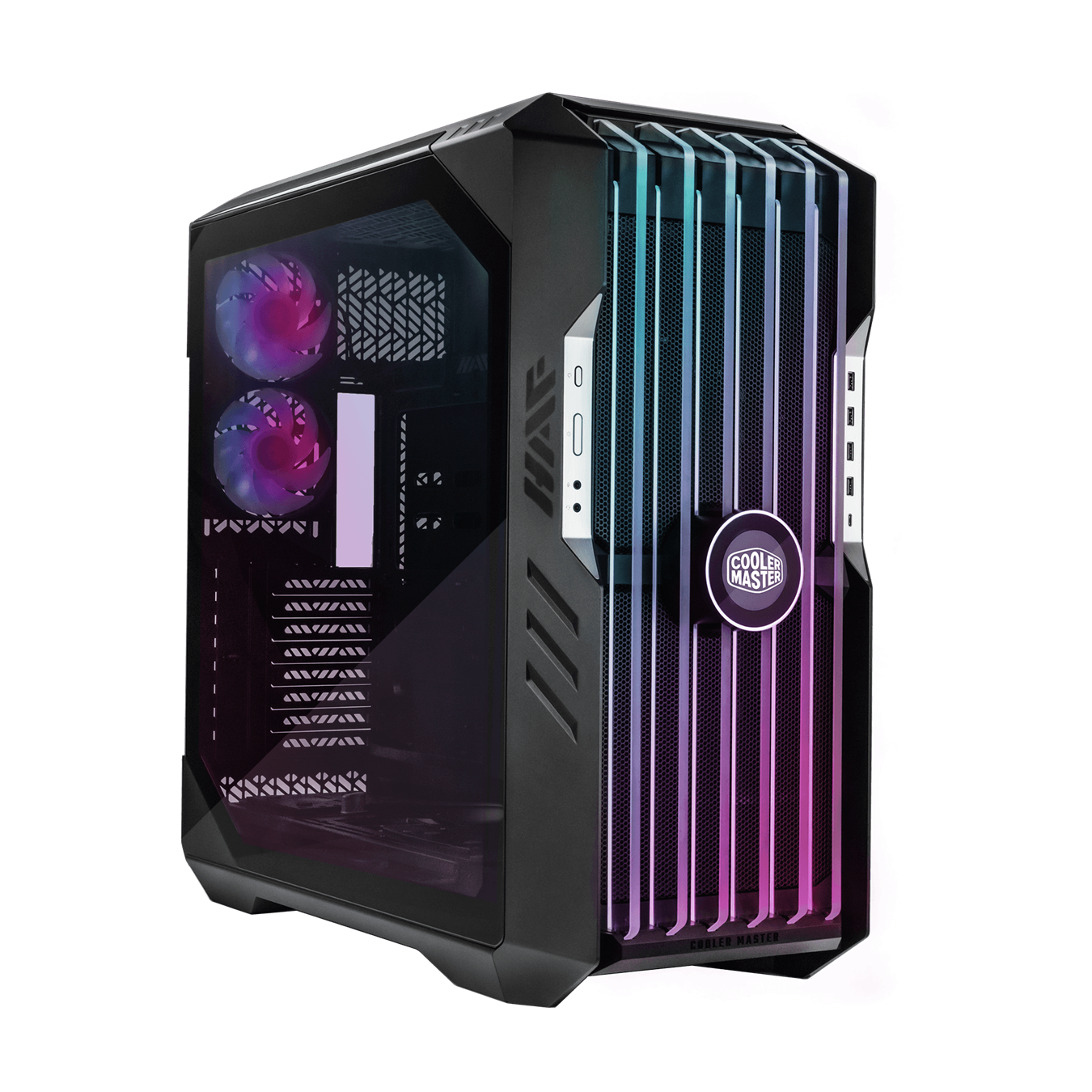

COOLER MASTER HAF 700 EVO CABINET

MODEL NUMBER

HAF 700 EVO: H700E-IGNN-S00, HAF 700 EVO WHITE: H700E-WGNN-S00

EXTERIOR COLOR

HAF 700 EVO: TITANIUM GREY, HAF 700 EVO WHITE: WHITE

MATERIALS – EXTERIOR

MESH, STEEL, PLASTIC

MATERIALS – LEFT SIDE PANEL

TEMPERED GLASS, STEEL

DIMENSIONS (L X W X H)

556 X 279 X 540 MM (BODY SIZE), 666 X 291 X 626 MM (INCL. PROTRUSIONS)

MOTHERBOARD SUPPORT

MINI ITX, MICRO ATX, ATX, E-ATX, SSI CEB, SSI EEB

EXPANSION SLOTS

8

5.25″ DRIVE BAYS

N/A

2.5″ / 3.5″ DRIVE BAYS (COMBO)

12

2.5″ DRIVE BAYS

12

I/O PANEL – USB PORTS

1X USB 3.2 GEN 2 TYPE C, 4X USB 3.2 GEN 1 (3.0)

I/O PANEL – AUDIO IN / OUT

1X 3.5MM 4 POLES AUDIO JACK, 1X 3.5MM MIC JACK

I/O PANEL – OTHER

1X LED CONTROLLER A1 (ARGB GEN 2), 1X ARGB/PWM HUB

PRE-INSTALLED FANS – FRONT

HAF 700 EVO: 2X SICKLEFLOW PWM PERFORMANCE ED. 200MM, HAF 700 EVO WHITE: 2X SICKLEFLOW WHITE PWM PERFORMANCE ED. ARGB 200MM

PRE-INSTALLED FANS – REAR

HAF 700 EVO: 2X SICKLEFLOW PWM ARGB 120MM, HAF 700 EVO WHITE: 2X SICKLEFLOW WHITE PWM ARGB 120MM

PRE-INSTALLED FANS – BOTTOM

HAF 700 EVO: 1X SICKLEFLOW PWM ARGB 120MM, HAF 700 EVO WHITE: 1X SICKLEFLOW WHITE PWM ARGB 120MM

FAN SUPPORT – TOP

2X 200MM, 3X 140MM, 6X 120MM (REMOVE 480MM BRACKET)

FAN SUPPORT – FRONT

2X 200MM, 3X 120/140MM

FAN SUPPORT – REAR

2X 120MM

FAN SUPPORT – BOTTOM

3X 120/140MM

FAN SUPPORT – SIDE

4X 120MM / 3X 140MM

RADIATOR SUPPORT – TOP

UP TO 2X 360MM / 1X 420MM

RADIATOR SUPPORT – FRONT

UP TO 420/360MM

RADIATOR SUPPORT – REAR

UP TO 240MM

RADIATOR SUPPORT – BOTTOM

UP TO 420/360MM

RADIATOR SUPPORT – SIDE

UP TO 480/420MM

CLEARANCE – CPU COOLER

166MM / 6.53″

CLEARANCE – PSU

200MM / 7.87″

CLEARANCE – GFX

490MM / 19.29″

CABLE ROUTING – BEHIND MOTHERBOARD TRAY

90-101MM

INCLUDED ACCESSORIES

HAF 700 EVO: VERTICAL GRAPHICS CARD HOLDER V3 (INCLUDE 165MM PCIE 4.0 RISER CABLE), HAF 700 EVO WHITE: UNIVERSAL GRAPHICS CARD HOLDER KIT V3 WHITE

DUST FILTERS

FRONT, BOTTOM, SIDE

POWER SUPPLY SUPPORT

BOTTOM MOUNT, ATX

WARRANTY

2 YEARS

SERIES

HAF SERIES

SIZE

FULL TOWER
