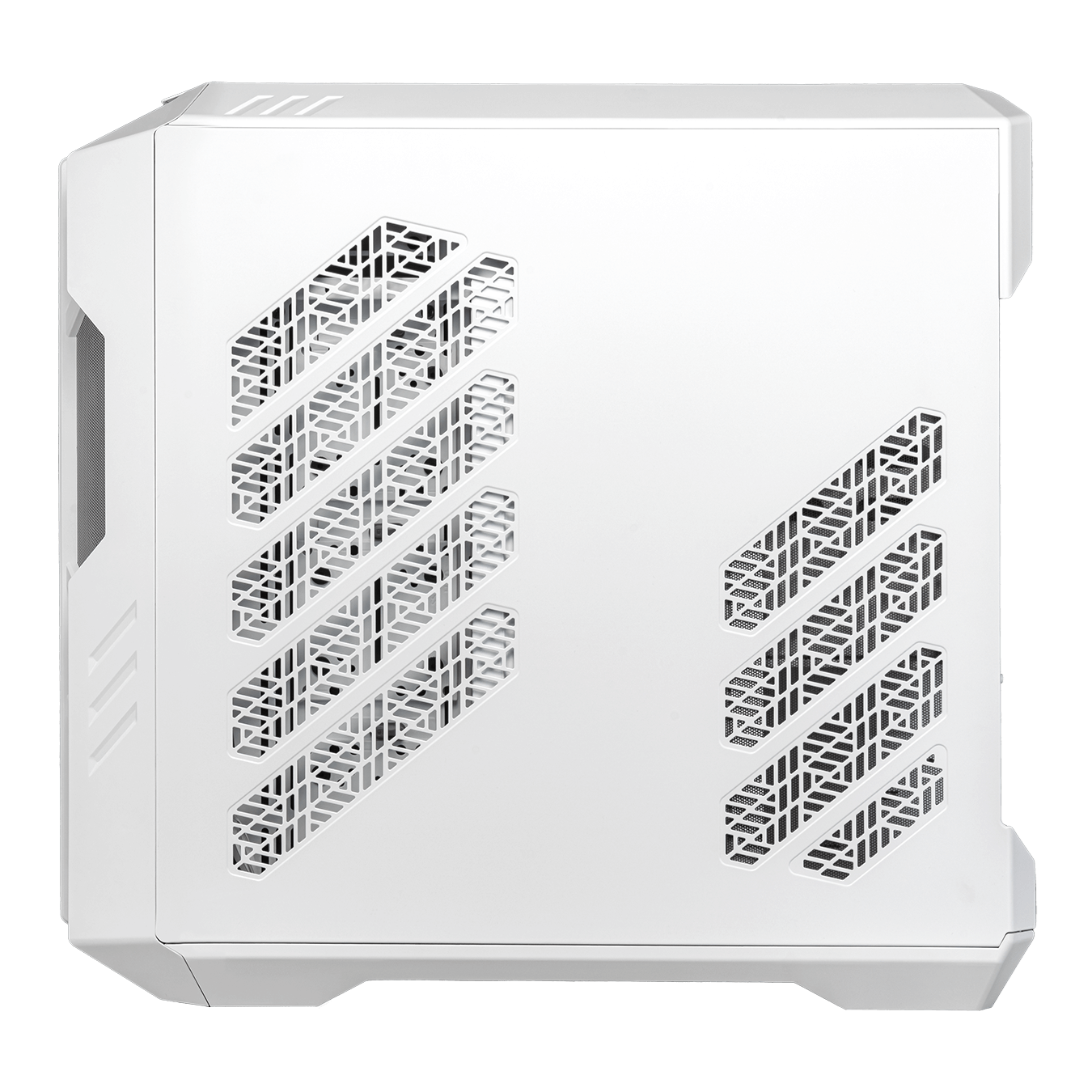

COOLER MASTER HAF 700 CABINET

MODEL NUMBER

HAF 700: H700-IGNN-S00, HAF 700 WHITE: H700-WGNN-S00

EXTERIOR COLOR

TITANIUM GREY, WHITE

MATERIALS – EXTERIOR

STEEL, PLASTIC

MATERIALS – LEFT SIDE PANEL

TEMPERED GLASS, STEEL, PLASTIC

DIMENSIONS (L X W X H)

556 X 279 X 540 MM (BODY SIZE), 666 X 291 X 626 MM (INCL. PROTRUSIONS)

MOTHERBOARD SUPPORT

MINI ITX, MICRO ATX, ATX, E-ATX, SSI CEB, SSI EEB

EXPANSION SLOTS

8

2.5″ / 3.5″ DRIVE BAYS (COMBO)

9 (4*HDD BRACKET, 5*SCREW+RUBBER)

I/O PANEL – USB PORTS

1X USB 3.2 GEN 2 TYPE C, 4X USB 3.2 GEN 1 (3.0)

I/O PANEL – AUDIO IN / OUT

1X 3.5MM 4 POLES AUDIO JACK, 1X 3.5MM MIC JACK

PRE-INSTALLED FANS – FRONT

2X SICKLEFLOW 200 ARGB PWM

PRE-INSTALLED FANS – REAR

2X SICKLEFLOW 120 ARGB PWM

PRE-INSTALLED FANS – BOTTOM

1X SICKLEFLOW 120 ARGB PWM

FAN SUPPORT – TOP

2X 200MM, 3X 140MM, 6X 120MM (REMOVE 480MM BRACKET)

FAN SUPPORT – FRONT

2X 200MM

FAN SUPPORT – REAR

2X 120MM

FAN SUPPORT – BOTTOM

3X 120/140MM

FAN SUPPORT – SIDE

4X 120MM / 3X 140MM

RADIATOR SUPPORT – TOP

UP TO 2X 360MM / 1X 420MM

RADIATOR SUPPORT – REAR

UP TO 240MM

RADIATOR SUPPORT – BOTTOM

UP TO 420/360MM

RADIATOR SUPPORT – SIDE

UP TO 480/420/360MM

CLEARANCE – CPU COOLER

166MM / 6.53″

CLEARANCE – PSU

200MM / 7.87″

CLEARANCE – GFX

490MM / 19.29″

CABLE ROUTING – BEHIND MOTHERBOARD TRAY

90-101MM

INCLUDED ACCESSORIES

1X ROTATABLE RADIATOR BRACKET, 1X LED CONTROLLER A1 (ARGB GEN2), 1X ARGB/PWM HUB

DUST FILTERS

BOTTOM, RIGHT SIDE

POWER SUPPLY SUPPORT

BOTTOM MOUNT, ATX

WARRANTY

2 YEARS

SERIES

HAF SERIES

SIZE

FULL TOWER
