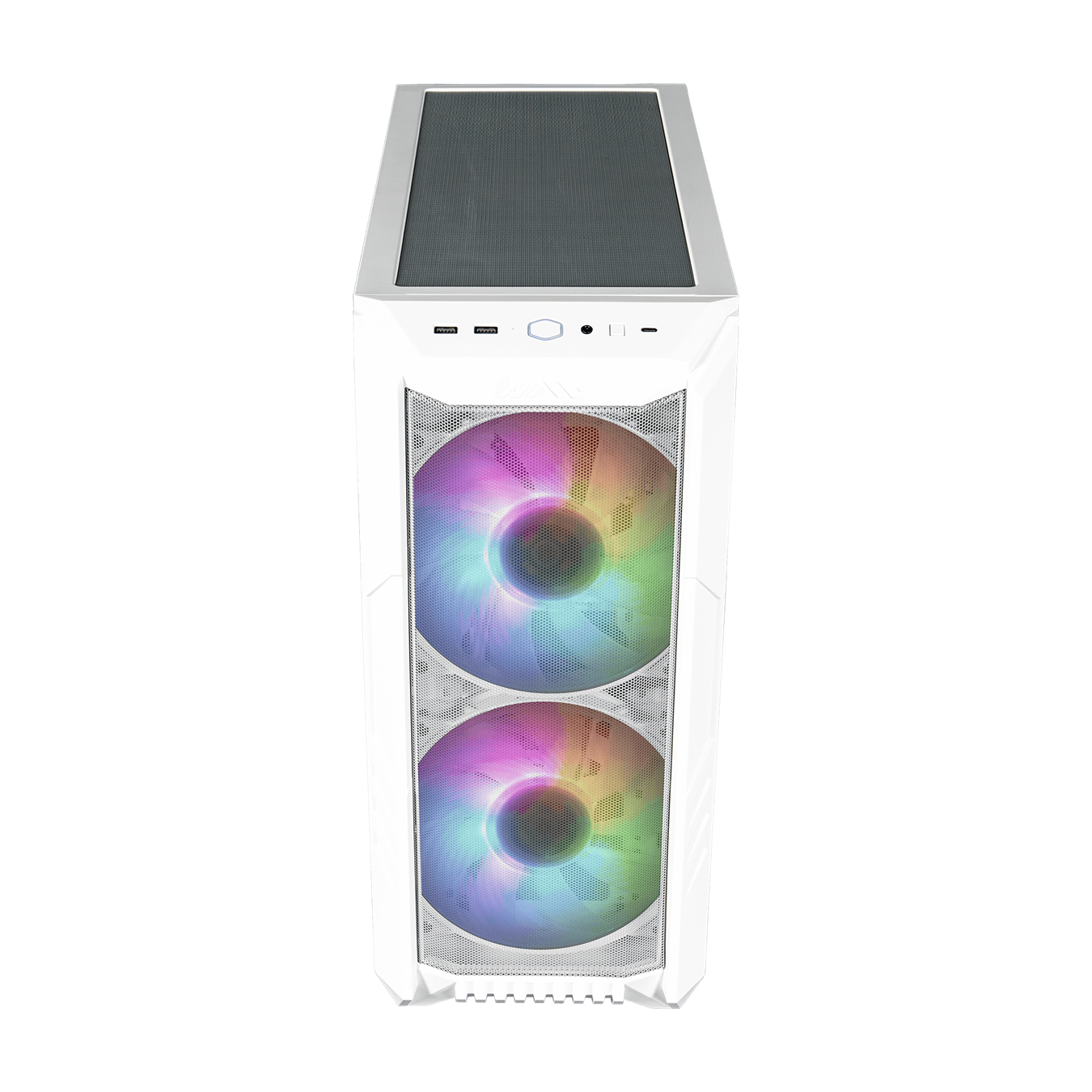

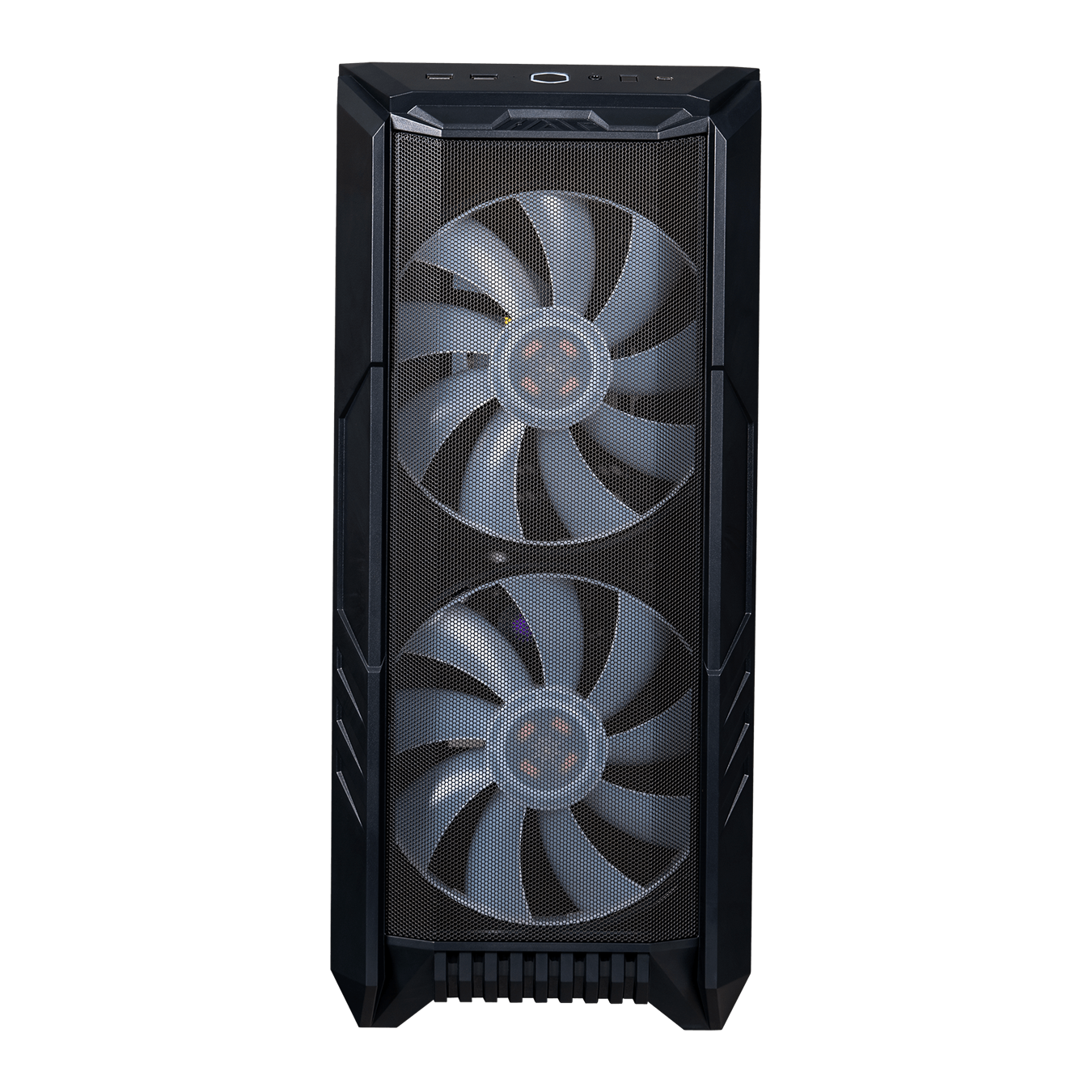

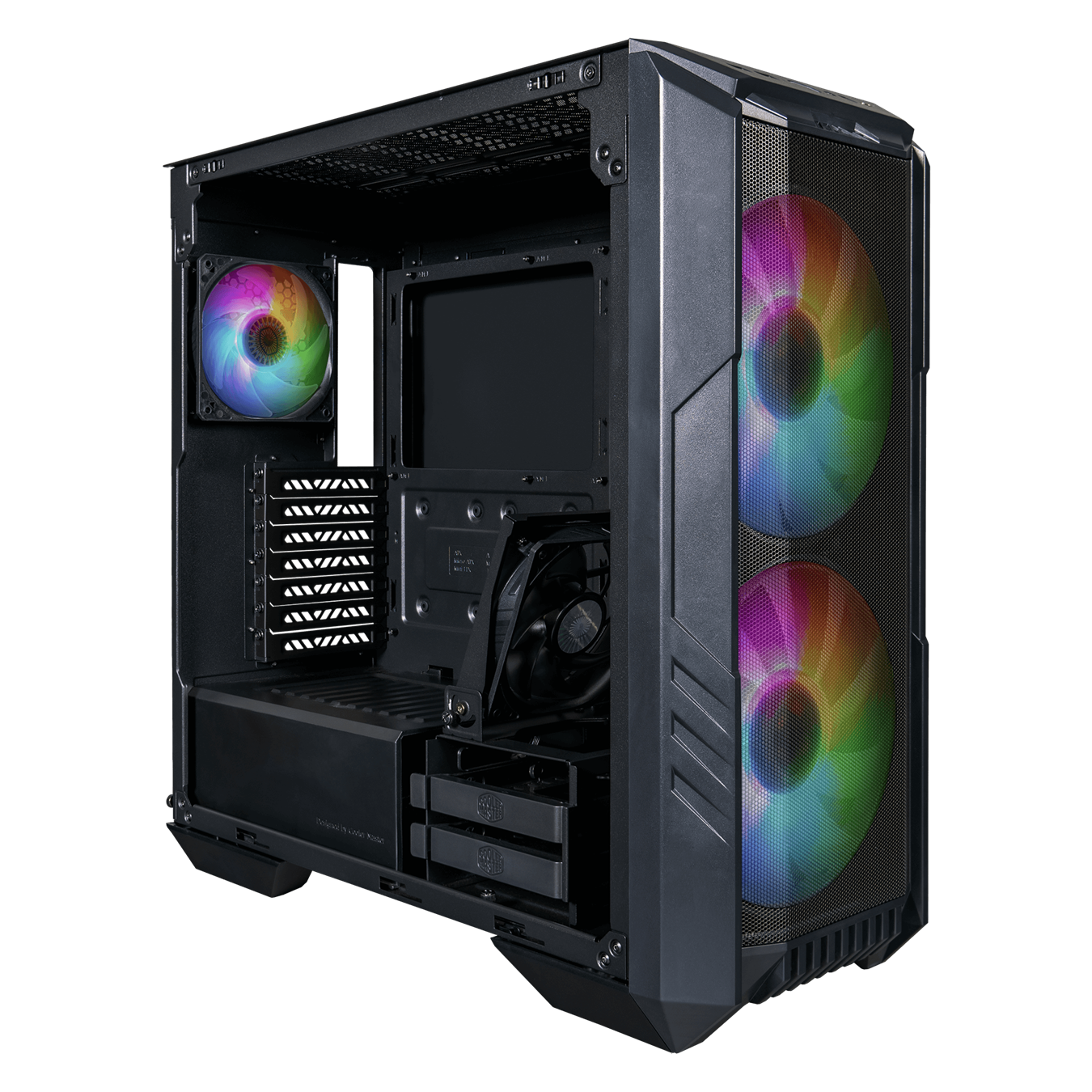

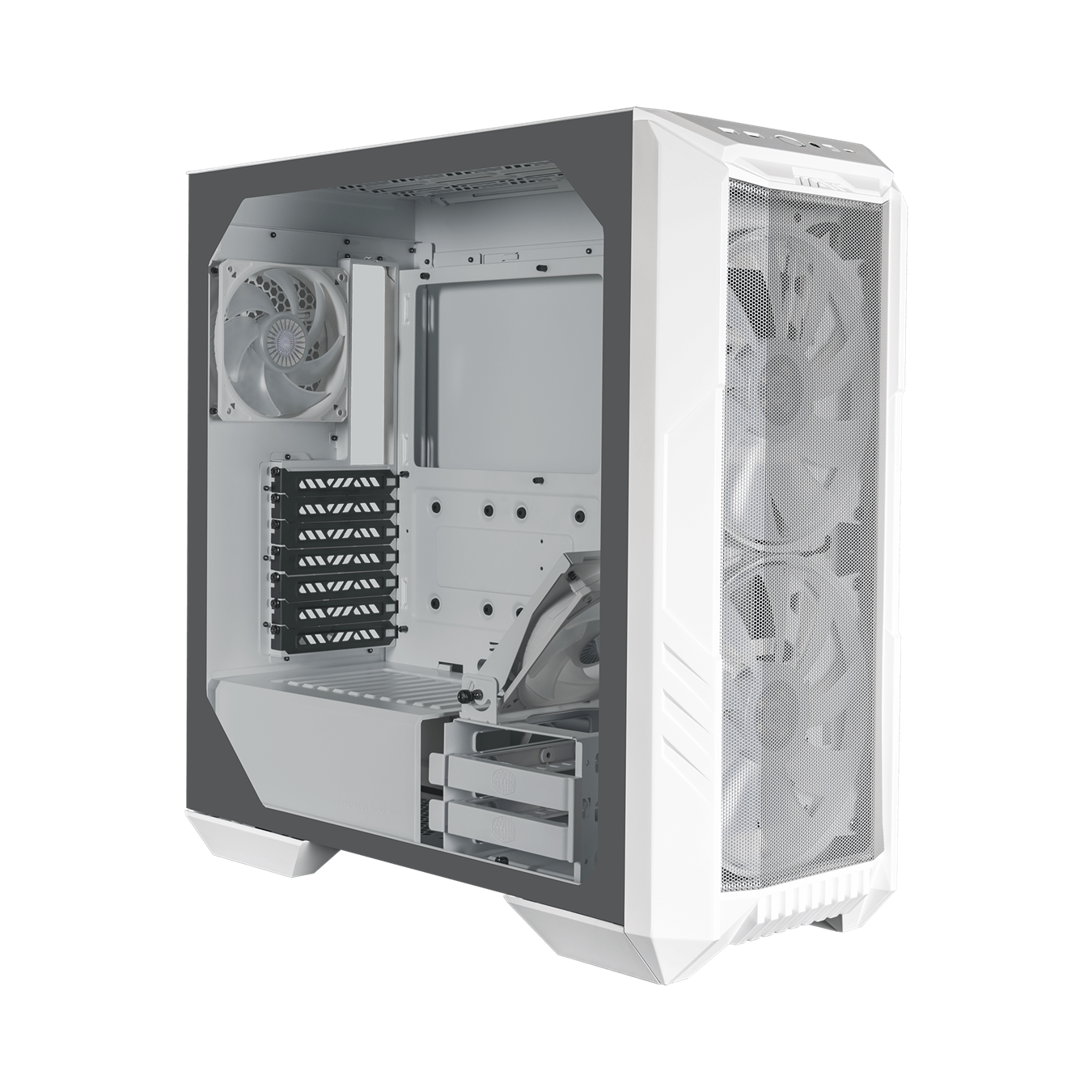

COOLER MASTER HAF 500 CABINET

EXTERIOR COLOR

BLACK, WHITE

MATERIALS – OUTLOOK

STEEL, MESH, PLASTIC

MATERIALS – SIDE PANEL

TEMPERED GLASS, STEEL

DIMENSIONS (L X W X H)

516 X 224 X 510MM (INCL. PROTRUSIONS)

MOTHERBOARD SUPPORT

ITX, MICRO ATX, ATX, SSI CEB, E-ATX*, (*UP TO 12″ X 14.1″, MAY IMPACT CABLE MANAGEMENT AND CASE FEATURES, REMOVE CABLE COVER AND GPU FAN BRACKET FEATURES)

EXPANSION SLOTS

7

5.25″ DRIVE BAYS

N/A

2.5″ / 3.5″ DRIVE BAYS (COMBO)

2

2.5″ DRIVE BAYS

2

I/O PANEL

2X USB 3.2 GEN 1 (FORMERLY USB 3.0), 1X USB 3.2 GEN 2 TYPE-C, 1X SINGLE AUDIO JACK, 1X RESET/ARGB BUTTON

ARGB CONTROLLER

ARGB HUB

PRE-INSTALLED FANS – FRONT

2X 200MM ARGB FAN

PRE-INSTALLED FANS – REAR

1X 120MM SICKLEFLOW PWM ARGB

PRE-INSTALLED FANS – TOP ON HDD CAGE

1X 120MM SICKLEFLOW PWM (GPU FAN)

FAN SUPPORT – TOP

3X 120MM, 2X 140MM, 2X 200MM

FAN SUPPORT – FRONT

3X 120MM, 2X 140MM, 2X 200MM, *200MM MOUNTING HOLE SPACING 154 X 154 W/ UP TO 30MM THICKNESS

FAN SUPPORT – REAR

1X 120MM

FAN SUPPORT – TOP ON HDD CAGE

1X 120MM

RADIATOR SUPPORT – TOP

120MM, 140MM, 240MM, 280MM, 360MM

RADIATOR SUPPORT – FRONT

120MM, 140MM, 200MM, 240MM, 280MM, 360MM

RADIATOR SUPPORT – REAR

120MM

CLEARANCE – CPU COOLER

167MM/6.5″

CLEARANCE – PSU

180MM/7.1″

CLEARANCE – GFX

410MM/16.1″

CABLE ROUTING – BEHIND MOTHERBOARD TRAY

30MM

DUST FILTERS

TOP, BOTTOM

POWER SUPPLY SUPPORT

BOTTOM MOUNT, ATX

WARRANTY

2 YEARS

SERIES

HAF SERIES

SIZE

MID TOWER
