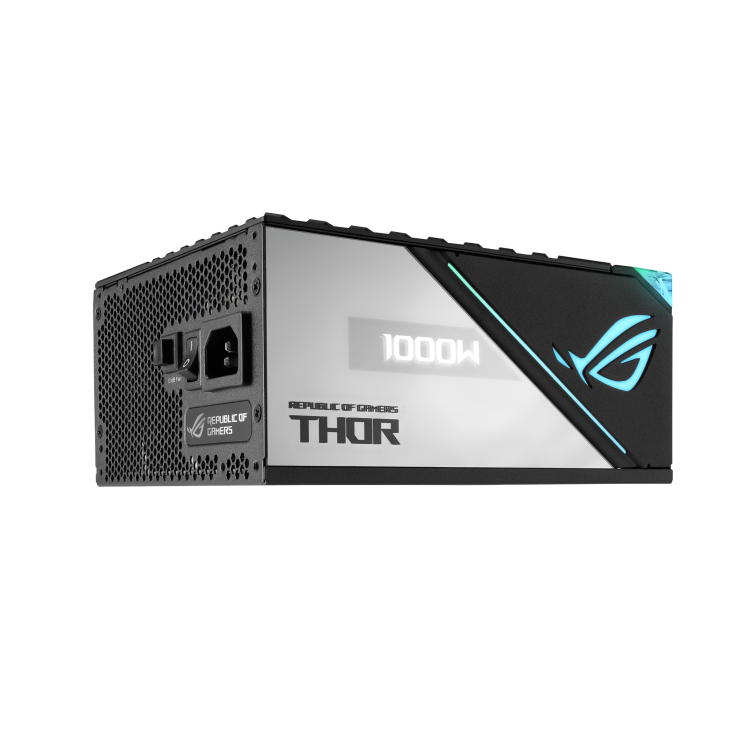

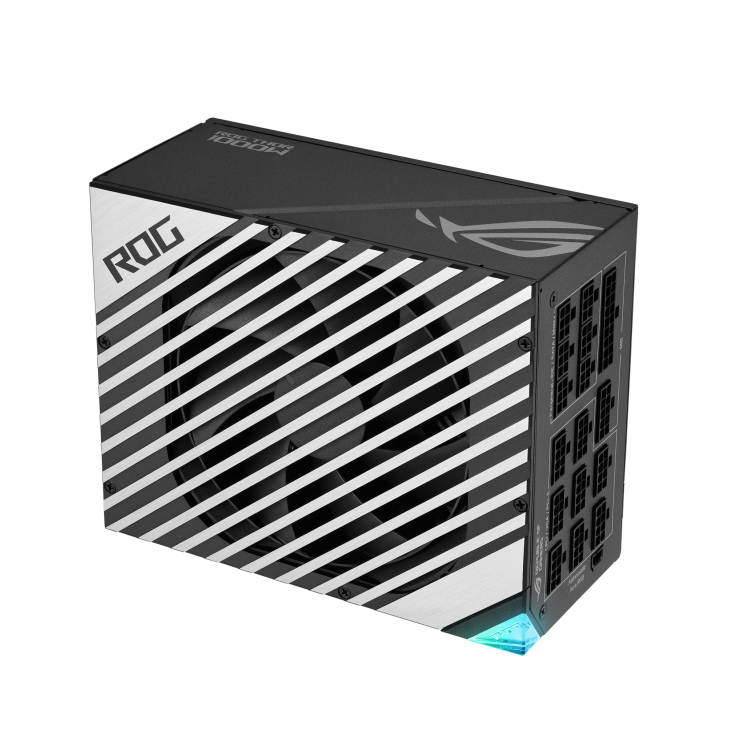

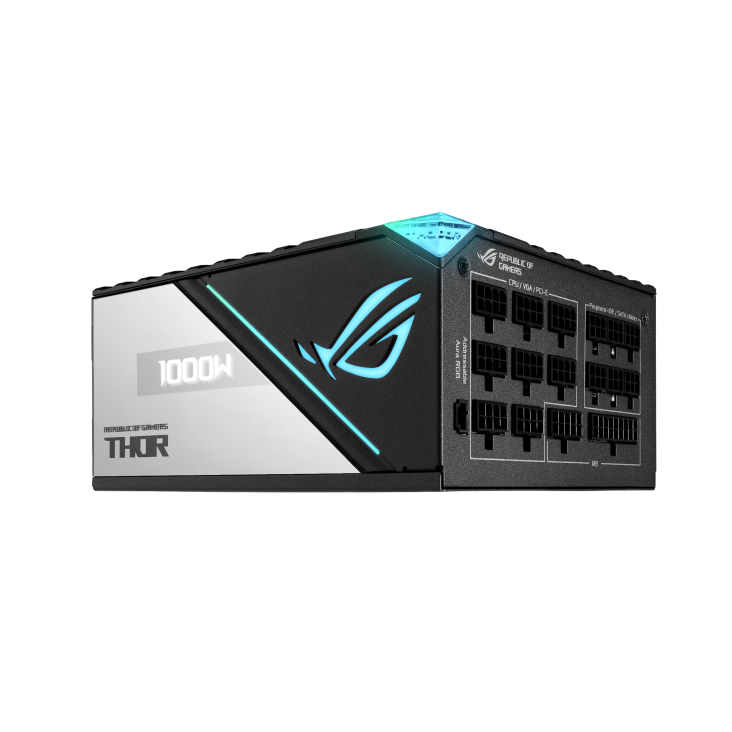

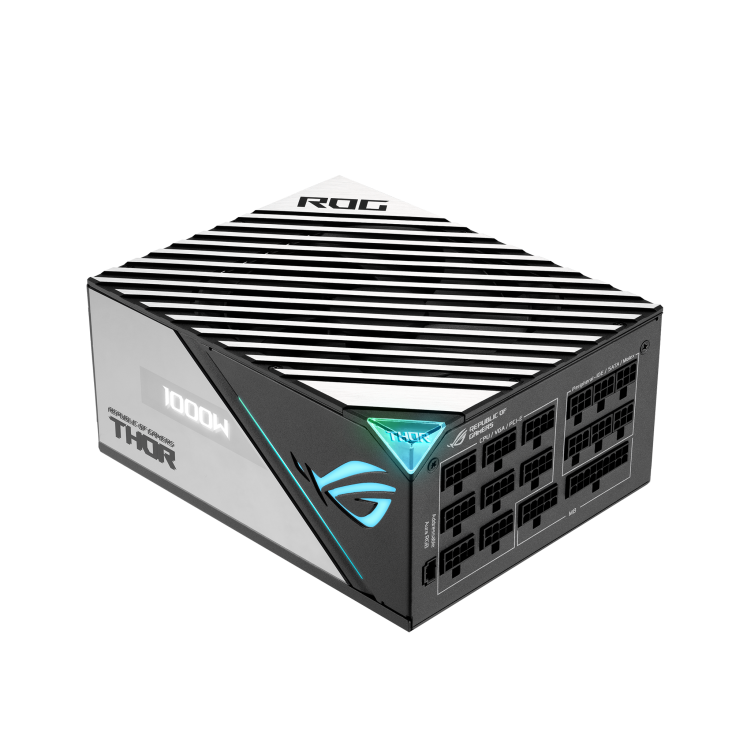

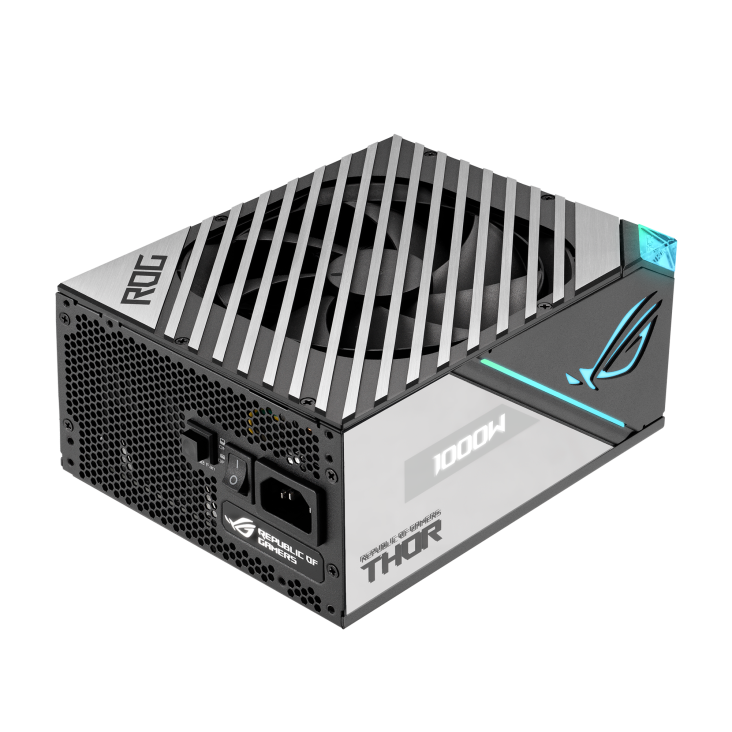

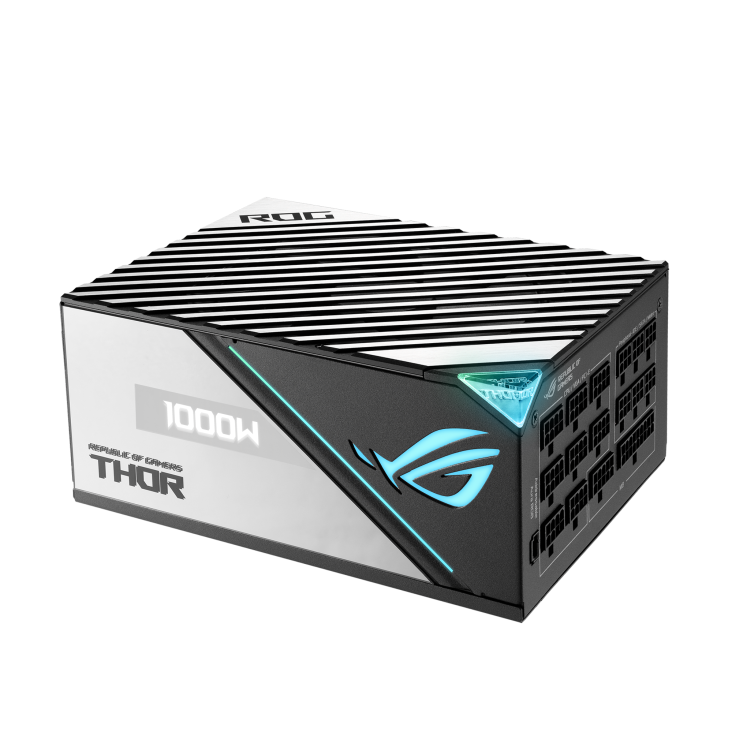

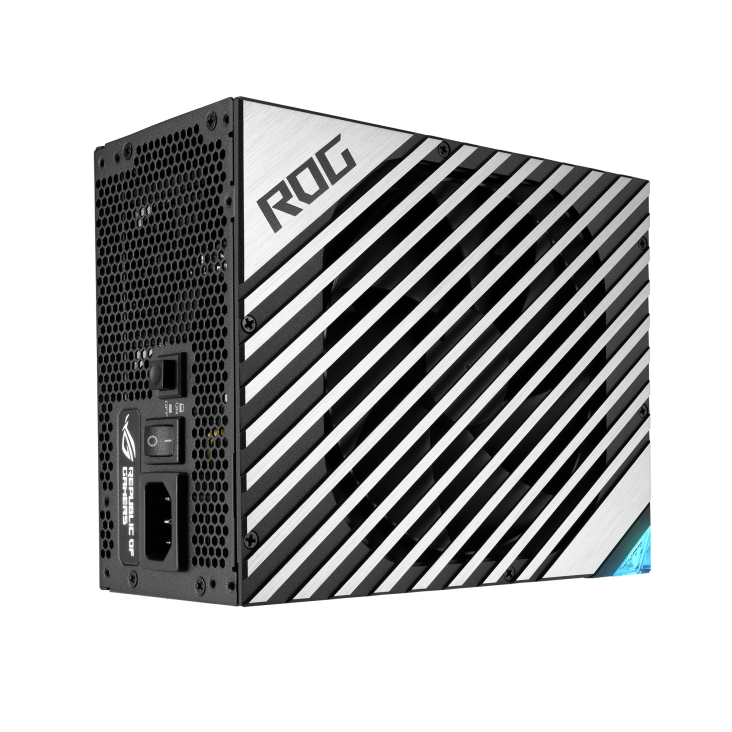

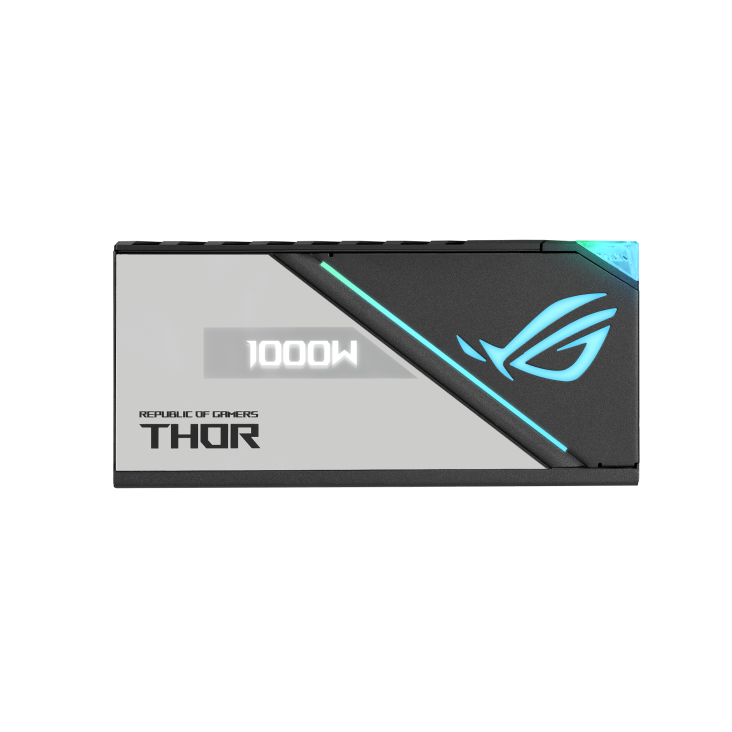

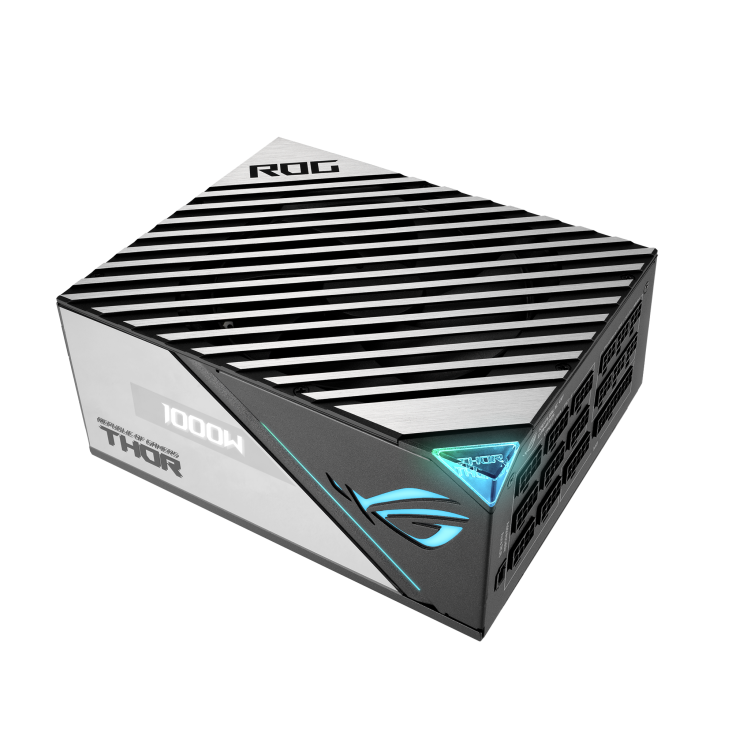

ASUS ROG-THOR-1000P2-GAMING 1000W SMPS

PFC TYPE

ACTIVE PFC

DIMENSIONS

190 X 150 X 86 MM

EFFICIENCY

80PLUS PLATINUM

PROTECTION FEATURES

OPP/OVP/UVP/SCP/OCP/OTP

HAZARDOUS MATERIALS

ROHS

AC INPUT RANGE

100-240VAC

THERMAL FEATURES

ROG THERMAL SOLUTION

DC OUTPUT VOLTAGE

+3.3V +5V +12V -12V +5VSB

MAXIMUM LOAD

25A 25A 83A 0.3A 3A

COMBINED LOAD

125W 125W 996W 3.6W 15W

TOTAL OUTPUT

1000W

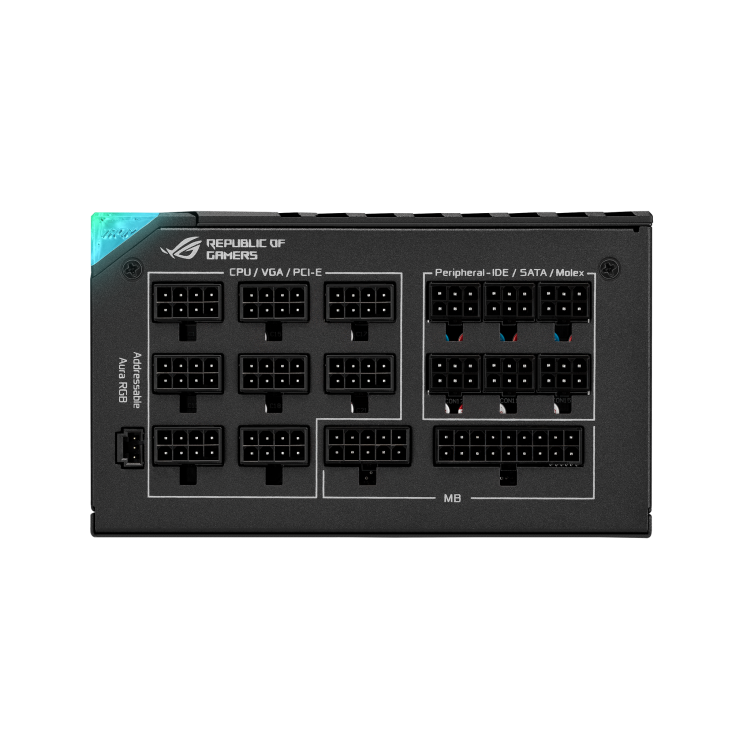

CABLE CONNECTORS

MB 24/20-PIN X 1

CPU 4+4-PIN X 2

PCI-E 16-PIN X 1 (COMPONENT SIDE)

PCI-E 6+2-PIN X 8

SATA X 12

PERIPHERAL X 6

PACKAGE CONTENTS

POWER CORD X 1

MOTHERBOARD POWER CABLE X1 (610MM)

CPU CABLE X2 (650MM)

PCIE CABLE 16-PIN X1 (675MM)

PCIE 1-TO-1 CABLE X4 (675MM)

PCIE 1-TO-2 CABLE X2 (675+75MM)

SATA 1-TO-4 CABLE X3 (400+120+120+120MM)

PERIPHERAL 1-TO-3 CABLE X2 (450+120+120MM)

ADDRESSABLE RGB CABLE X1 (800MM)

ROG STICKER X 1

ROG CABLE TIE X 6

SLEEVED CABLE COMBS (6-PIN) X 4

SLEEVED CABLE COMBS (8-PIN) X 10

SLEEVED CABLE COMBS (24-PIN) X 2

CHASSIS SCREWS PACKAGE X 1

CABLE TIE X 12

USER MANUAL X 1

WEIGHT

2.37 KG

AURA SYNC

ARGB

CYBENETICS NOISE LEVEL CERTIFICATION

A++

0DB TECHNOLOGY

SUPPORTED. THE FAN SHUTS OFF ENTIRELY WHEN THE PSU IS UNDER CERTAIN LOAD
