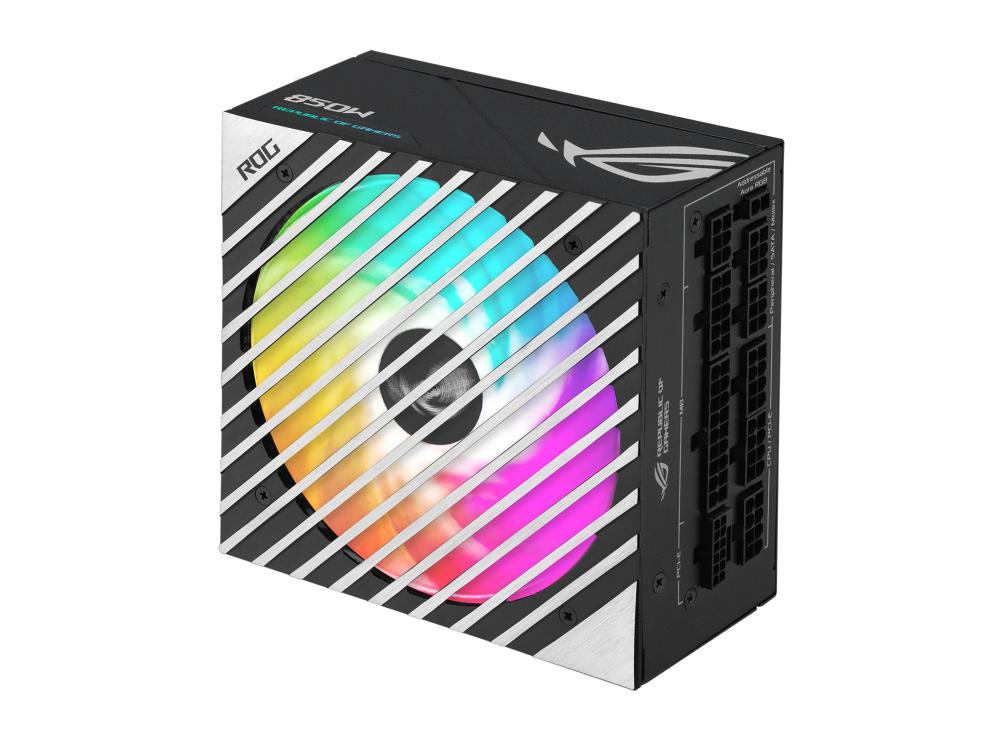

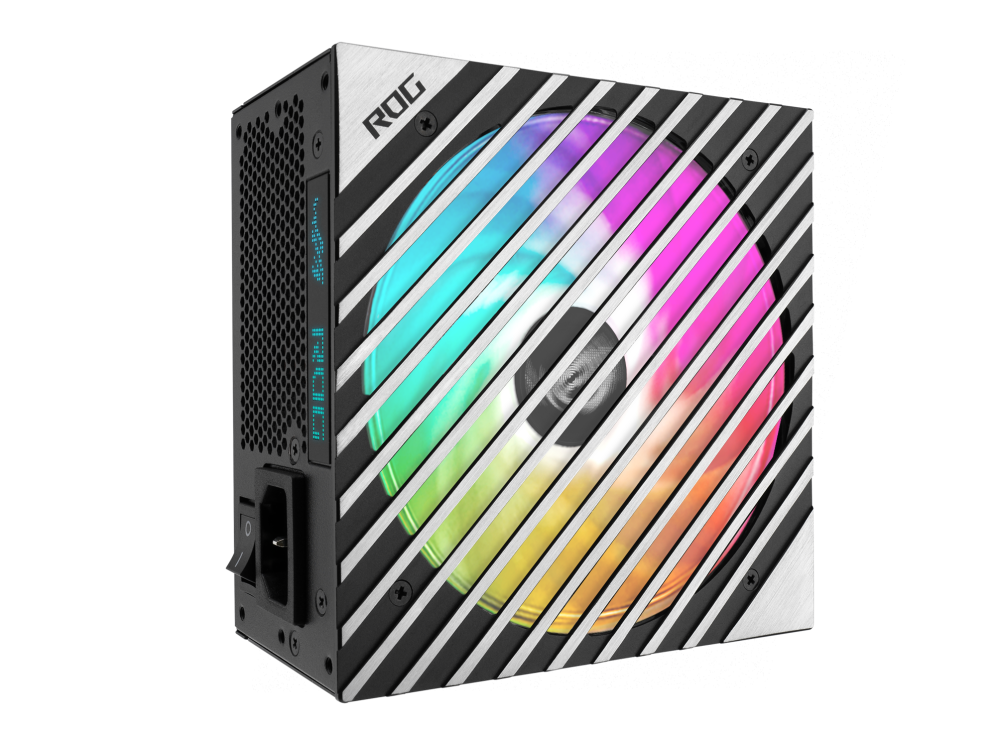

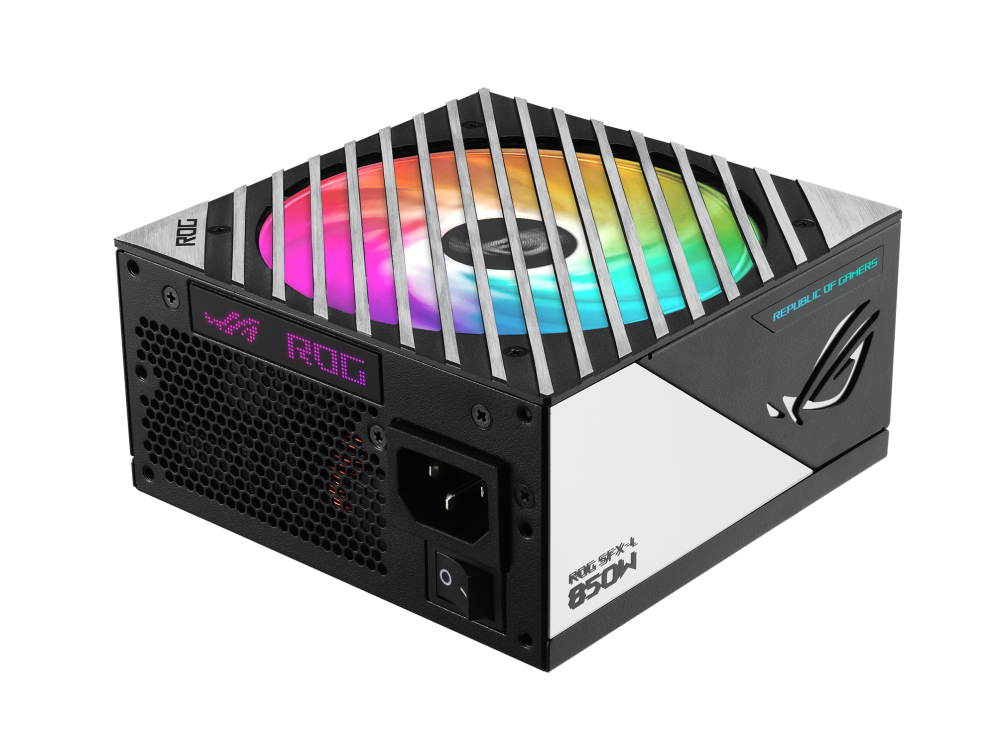

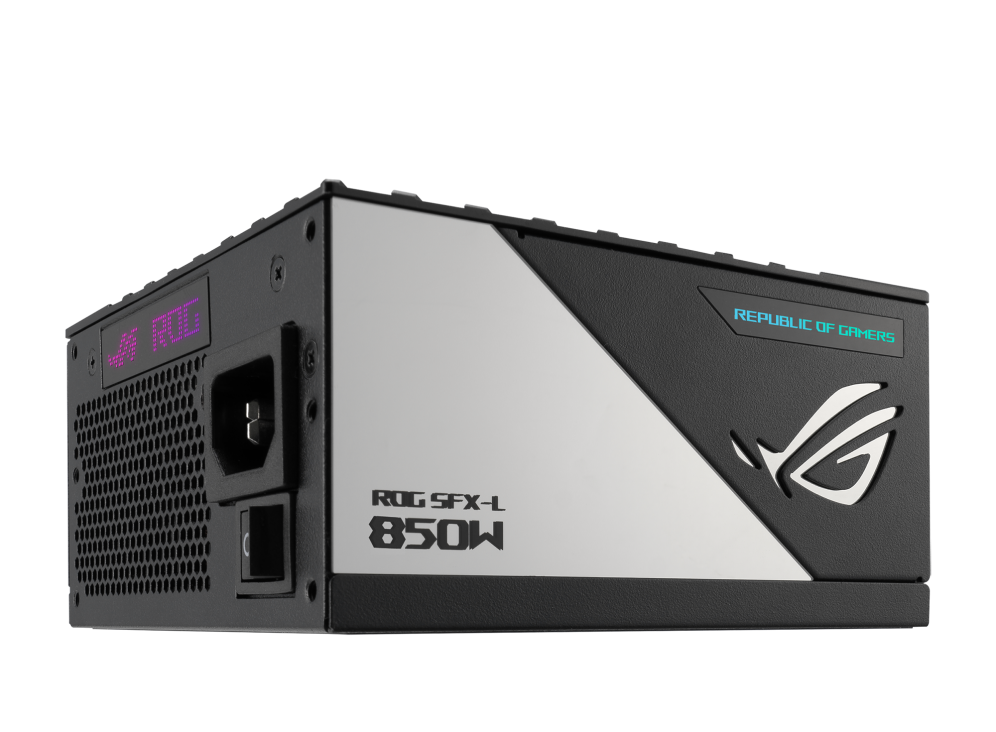

ASUS ROG LOKI 850P SFX-L 850W 80 PLUS PLATINUM SMPS

INTEL FORM FACTOR

SFX-L

PFC TYPE

ACTIVE PFC

ATX 3.0

YES

DIMENSIONS

125 X 125 X 63.5 MM

EFFICIENCY

80PLUS PLATINUM

PROTECTION FEATURES

OPP/OVP/UVP/SCP/OCP/OTP

HAZARDOUS MATERIALS

ROHS

AC INPUT RANGE

100-240VAC

DC OUTPUT VOLTAGE

+3.3V +5V +12V -12V +5VSB

MAXIMUM LOAD

20A 20A 62.5A 0.8A 2.5A

COMBINED LOAD

110W 110W 850W 9.6W 12.5W

TOTAL OUTPUT

850W

CABLE CONNECTORS

MB 24/20-PIN X 1

CPU 4+4-PIN X 2

PCI-E 16-PIN X 1 (BOTH PSU & COMPONENT SIDE)

PCI-E 8-PIN X 3

SATA X 6

PERIPHERAL X 4

PACKAGE CONTENTS

POWER CORD X 1

MOTHERBOARD POWER CABLE X 1 (450MM)

CPU CABLE X 2 (550MM)

PCI-E GEN 5 16-PIN CABLE X 1 (450MM)

PCI-E (16-PIN TO 8-PIN-8-PIN) CABLE X 1 (450MM)

PCI-E 1-TO-1 CABLE X 1 (450MM)

SATA 1-TO-3 CABLE X 2 (300+200+100MM)

PERIPHERAL 1-TO-4 CABLE X 1 (300+100+100+100MM)

ADDRESSABLE RGB CABLE X 1 (800MM)

USER MANUAL X 1

ATX TO SFX ADAPTER BRACKET X 1
